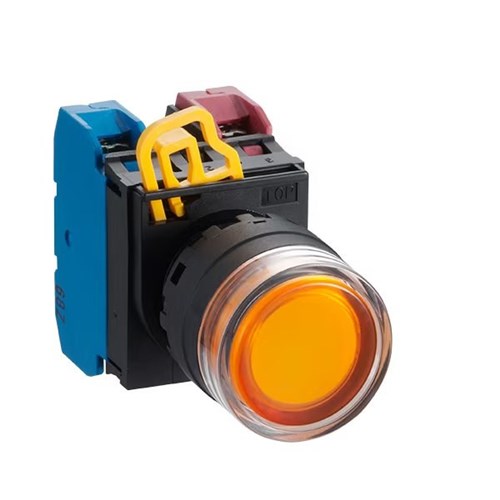

<p>When it comes to selecting a reliable and efficient pushbutton for industrial and commercial applications, this illuminated pushbutton from the YW series stands out as a solid choice. Designed with precision and built to meet rigorous standards, this device is engineered to deliver consistent performance in demanding environments.</p><p>The pushbutton operates at a rated voltage of 24 VAC/DC, making it versatile for various power systems. Its compact dimensions—30 mm in width, 41.4 mm in height, and 64.8 mm in depth—allow for easy integration into control panels without compromising on space or functionality.</p><p>One of the notable features is its illumination capability, powered by a built-in red LED lamp. This ensures clear visibility even in poorly lit conditions, enhancing operational efficiency and safety. The actuator type is extended with a full shroud design that provides additional protection against accidental activation.</p><p>Designed to endure harsh conditions, the pushbutton boasts an impressive operational temperature range from -20&#176;C to 55&#176;C while storage temperatures can vary widely from -40&#176;C to 85&#176;C. It also offers robust resistance characteristics with vibration resistance between 5-55 Hz and shock resistance up to 10 g/ms.</p><p>In terms of durability, the mechanical life expectancy reaches up to 0.25 million operations for single contact blocks and up to 0.1 million operations for double contact blocks—a testament to its longevity under frequent use scenarios.</p><p>The device features a screw terminal type which ensures secure connections while maintaining ease of installation or replacement when necessary. Its degree of protection includes IP65 rating at the front ensuring dust-tight sealing and water jet protection; however, terminals are rated IP20 indicating basic finger protection against electrical contacts.</p><p>Safety certifications are well-covered with cULus listing along with CE marking UKCA certification and CCC certification which affirm compliance with international quality standards—an essential factor for global applications.</p><p>Electrical specifications include a rated insulation voltage of 600 V supported by an insulation resistance greater than or equal to 100 MOhm providing enhanced safety margins during operation alongside maintaining system integrity over time due largely thanks again due partly because its continuous current rating maxes out at ten amps meaning high-performance levels remain achievable across different load scenarios</p><p>The bezel material crafted from durable plastic further adds value through impact-resistance properties ensuring long-term resilience against physical stresses often encountered within industrial settings</p><p>Finally featuring one normally open (NO) plus one normally closed (NC) contact configuration allows flexible control options adaptable enough suit diverse application needs whether simple start-stop circuits more complex interlock systems alike all facilitated via standard cutout size diameter measuring precisely twenty-two millimeters matching industry norms perfectly aligning existing setups seamlessly integrating new installations effortlessly</p>
