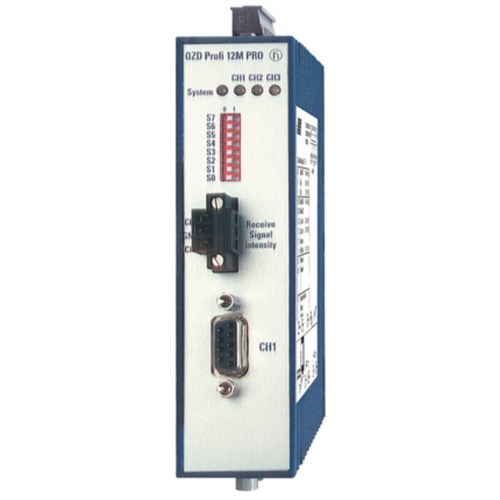

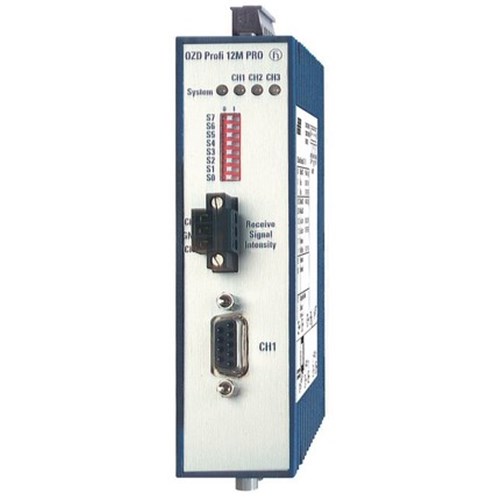

Hirschmann 943 906-221 Electrical/Optical Interface Converter For: Profibus-Field Bus Networks

Product Code: 943 906-221

  • Converts signals for Profibus networks
  • Supports single mode & multimode fibre
  • DIN rail mounting for easy installation
  • Operates in 0 to 60°C; IP20 protection
  • ATEX and IECEx certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Electrical/Optical Interface Converter
Brand HIRSCHMANN
Series OZD
Degree of Protection IP20
Depth 119 mm
Fibre Type 9/125 µm Single Mode, 50/125 µm Multimode, 62.5/125 µm Multimode
Height 163 mm
Humidity 10-95%
Material Plastic
Mounting Type DIN Rail
Number of Pins 9
Number of Ports (1) Optical - 2 Sockets BFOC 2.5 (STR), (1) Electrical - Sub-D 9-Pin (Female)
Operational Temperature 0 to 60 deg C
Rated Current 200 mA
Rated Power 4.8 W
Rated Voltage 7-12 VAC/VDC
Relative Humidity 10-95 %
Standards and Approvals ATEX, IECEx
Storage Temperature -40 to 70 deg C
Suitable For Use With Profibus-Field Bus Networks
Width 35 mm

Description

The OZD Series Converter is a robust solution for professionals seeking reliable data transmission in industrial and commercial environments. Designed to cater to the needs of Profibus-Field Bus Networks, this converter integrates seamlessly into existing systems with its versatile connectivity options.

With a rated power of 4.8 W and operating within a voltage range of 7-12 VAC/VDC, the OZD Series Converter ensures efficient energy consumption while maintaining optimal performance. The unit's compact dimensions—35 mm in width, 163 mm in height, and 119 mm in depth—make it an ideal choice for space-constrained installations. Its DIN Rail mounting type further simplifies integration into standard control panels.

Constructed from durable plastic, the converter offers an IP20 degree of protection, safeguarding internal components against dust ingress while operating effectively within temperatures ranging from 0 to 60 degrees Celsius. For storage purposes, it can withstand temperatures as low as -40 degrees Celsius up to 70 degrees Celsius without compromising integrity.

The device supports a wide humidity range of 10-95%, ensuring reliable operation across various environmental conditions. It complies with stringent ATEX and IECEx standards and approvals, underscoring its suitability for use in potentially explosive atmospheres.

Connectivity is facilitated through one optical port featuring two BFOC 2.5 (STR) sockets alongside one electrical Sub-D 9-pin female port. This dual-port configuration enhances flexibility by accommodating both single-mode (9/125 um) and multimode (50/125 um or 62.5/125 um) fiber types.

Overall, the OZD Series Converter stands out as a dependable component for enhancing network communication efficiency while adhering to international safety standards—a fitting choice for those prioritizing reliability and compliance in their technical setups.
