Fuse Size	NH000, NH00
Fuse Type	DIN
Operating Mechanism	Front Operated
Position of Line Terminals	Left In - Right Out
Rated Insulation Voltage	1000 V
Rated Operational Current AC-21A (A)	(500 V) 160 A (690 V) 160 A
Rated Operational Current AC-22A (A)	(500 V) 160 A (690 V) 160 A
Rated Operational Current AC-23A (A)	(500 V) 160 A (690 V) 160 A
Rated Operational Power AC-23A (kW)	(220 ... 240 V) 45 kW (400 V) 75 kW (415 V) 75 kW (500 V) 90 kW (690 V) 132 kW
Rated Short-time Withstand Current Low Voltage - Icw (A)	for 1 s 5 kiloampere rms
Switching Type	22 (Between the Poles)
Terminal Width (mm)	20 mm
Type of Mounting	Base mounting
Brand	ABB
Conventional Free-Air Thermal Current - Ith (A)	T = 40 °C 160 A
Conventional Thermal Current - Ithe (A)	Fully Enclosed 160 A
Dimensions (mm)	150 * 277 * 156 [HWD]
Handle Type	Pistol handle and shaft included
No. of Poles	4
Pollution Degree	3
Power Loss (W)	at Rated Operating Conditions per Pole 12 W
Rated Conditional Short-Circuit Current - Inc (kA)	(690 V) 80 kA
Rated Current (A)	Main Circuit 160 A
Rated Impulse Withstand Voltage (kV)	8
Rated Operational Voltage AC (V)	Main Circuit 690 V AC
Standards	IEC 60947-3
Terminal Type	Lug terminals
Tightening Torque (Nm)	15 ... 22 N·m

Switch Disconnectors

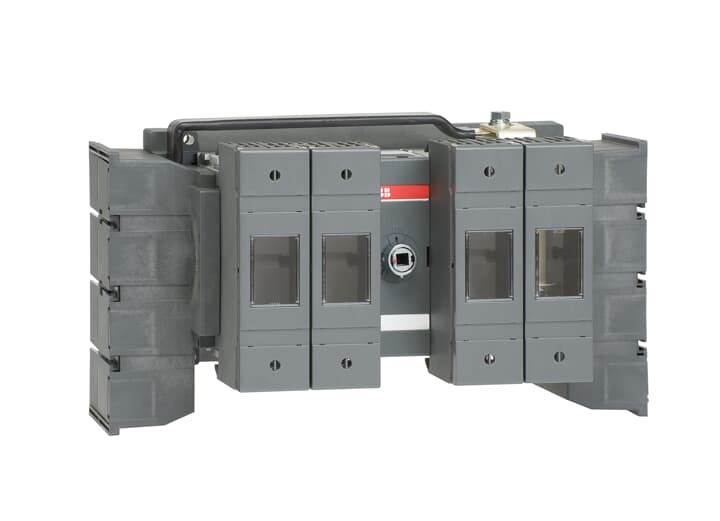

ABB FUSE SWTCH 160A 4P 00/000 FUSE DIN TYPE WITH 161MM SHAFT AND EXT HANDLE IP65 OS160GD22LRP
