Clamp Type	Screw Terminals
Fuse Size	NH000
Fuse Type	DIN
Operating Mechanism	Front Operated
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Insulation Voltage	1000 V
Rated Operational Current AC-21A (A)	(500 V) 63 A (690 V) 63 A
Rated Operational Current AC-22A (A)	(500 V) 63 A (690 V) 63 A
Rated Operational Current AC-23A (A)	(500 V) 63 A (690 V) 63 A
Rated Operational Power AC-23A (kW)	(220 ... 240 V) 18.5 kW (400 V) 30 kW (415 V) 30 kW (500 V) 37 kW (690 V) 55 kW
Rated Short-time Withstand Current Low Voltage - Icw (A)	for 1 s 2.5 kiloampere rms
Switching Type	03 (Left Side)
Type of Mounting	Base mounting
Brand	ABB
Cable Cross Section (mm²)	2.5 ... 25 mm²
Conventional Free-Air Thermal Current - Ith (A)	T = 40 °C 63 A
Conventional Thermal Current - Ithe (A)	Fully Enclosed 63 A
Dimensions (mm)	125 * 112 * 121 [HWD]
Handle Type	Pistol handle and shaft included
No. of Poles	3
Pollution Degree	3
Power Loss (W)	at Rated Operating Conditions per Pole 7.5 W
Rated Conditional Short-Circuit Current - Inc (kA)	(690 V) 80 kA
Rated Current (A)	Main Circuit 63 A
Rated Impulse Withstand Voltage (kV)	12
Rated Operational Voltage AC (V)	Main Circuit 690 V AC
Standards	IEC 60947-3
Tightening Torque (Nm)	3 N·m 4 N·m

Switch Disconnectors

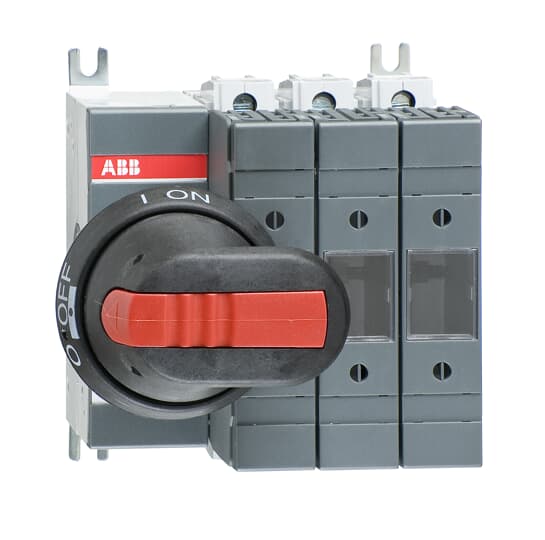

ABB FUSE SWITCH 63A 3P F/OPERTD IP65 C/W DIRECT HANDLE NH000 MECHANISM END OF SWITCH OS63GD03P
