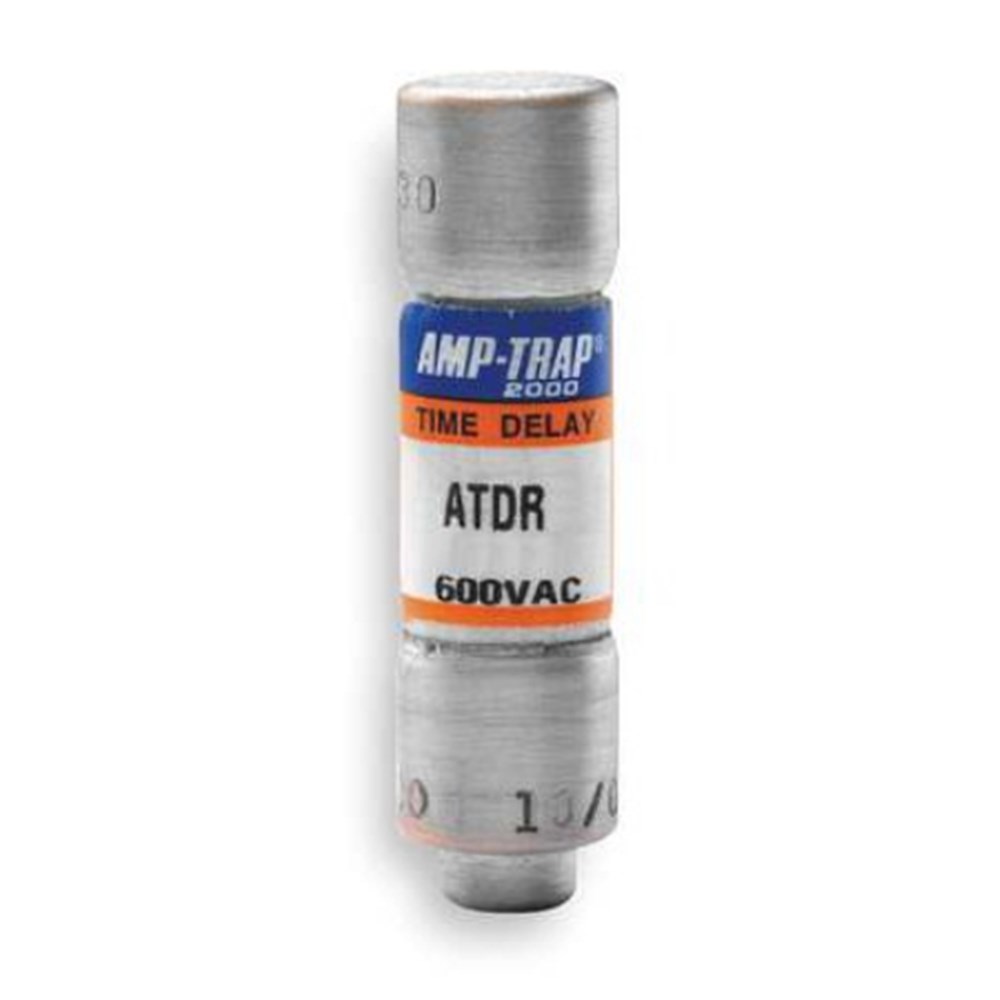

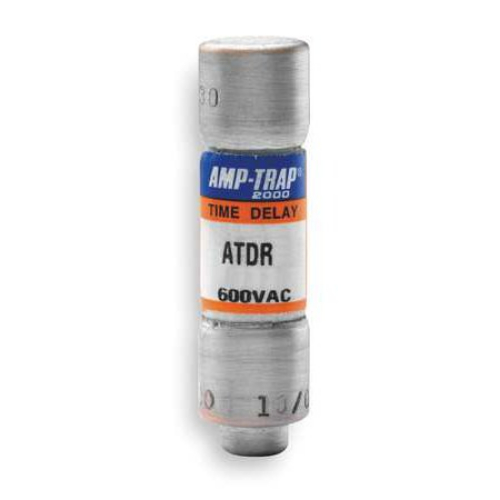

MERSEN ATDR8 FUSE LINK 8A 600VAC/300VDC DELAY 10X38mm 200kA REJECTION CLASS CC FOR SMALL MOTORS

Product Code: ATDR8

ATDR small-dimension fuses offer IEC Type 2 No Damage protection for sensitive branch circuit components and small motors, reducing the risk of fault-related damage. These Class CC fuses have the best time-delay characteristics in their class and are highly reliable for small motor loads. They have a voltage rating of 600VAC/300VDC and a rated current of 8A. These fuses can handle short circuit currents up to 200kA/AC and 100kA/DC.

Technical Specifications

Body Style Rejection
Fuse Class Class CC
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Brand MERSEN
Body Size (mm) 10 x 38
Functionality Time Delay
Rated Current (A) 8
Rated Voltage AC (V) 600
Rated Voltage DC (V) 300
