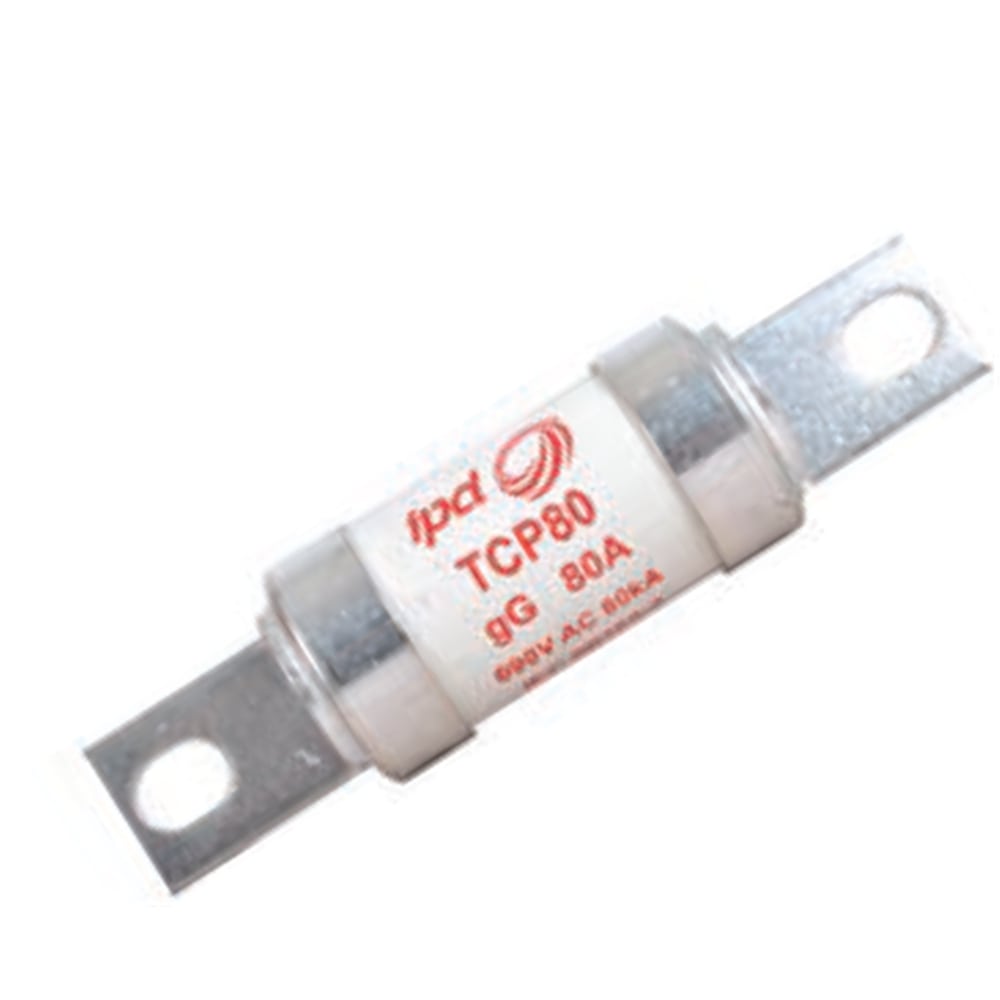

IPD TCP80 Fuse Link 80A 690VAC Offset Slotted Bolted Tag BS88/A4 Fuse 80kA 94mm gG

Product Code: TCP80

  • Bolt-In fuse with 80 A rated current
  • Complies with BS 88-2, AS 60269 standards
  • Operates at up to 690 VAC
  • High breaking capacity of 80 kA
  • Suitable for RS100, CM100, RSM holders
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Fuse Link
Brand IPD
Ambient Temperature 40 deg C
Body Diameter 26.2 mm
Breaking Capacity 80 kA
Fixing Centres 94 mm
Fuse Shape Offset Slotted Bolted Tag
Fuse Type BS88/A4
Rated Current 80 A
Rated Voltage 690 VAC
Standards and Approvals BS 88-2, AS 60269, IEC 269-2-1, ASTA20
Suitable Fuse Holder RS100, CM100, RSM

Description

When selecting the right components for your industrial or commercial electrical systems, understanding the specifications is crucial. This bolt-in fuse offers a blend of reliability and performance tailored to demanding environments.

Rated at 80 A, this fuse is designed to handle substantial current loads while maintaining safety and efficiency. It adheres to several rigorous standards and approvals, including BS 88-2, AS 60269, IEC 269-2-1, and ASTA20. These certifications ensure compliance with international safety and quality benchmarks—an essential factor for professionals seeking dependable solutions.

The rated voltage of this fuse stands at an impressive 690 VAC. This capability makes it suitable for a wide range of high-voltage applications across various sectors. With a breaking capacity of 80 kA, it can safely interrupt fault currents without compromising system integrity—a critical feature in preventing equipment damage during overloads or short circuits.

Designed with practicality in mind, the ambient temperature rating is set at 40°C. This specification ensures that the fuse operates optimally within typical industrial conditions without risk of overheating or failure.

The physical design includes fixing centres measured at 94 mm and a body diameter of 26.2 mm. The offset slotted bolted tag shape facilitates straightforward installation and secure connections within compatible systems.

For compatibility purposes, this bolt-in fuse pairs seamlessly with specific holders such as RS100, CM100, and RSM models. Selecting the correct holder is vital to ensure proper fitment and functionality within your existing setup.

In summary, this bolt-in fuse represents a robust choice for those requiring high-performance components that meet stringent standards while offering practical installation features suited to complex electrical environments.
