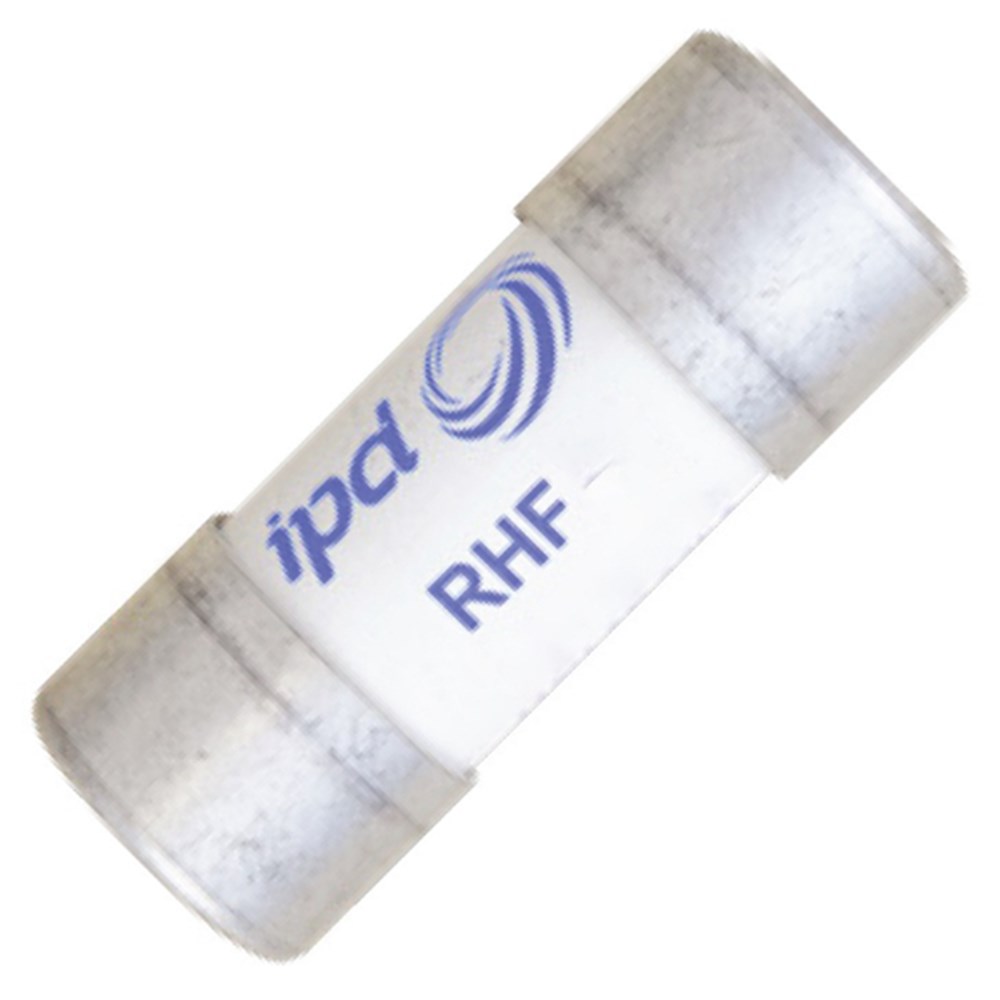

IPD CONSUMER UNIT FUSE-LINK, FERRULE TYPE 415V AC 22x57mm 60A RHF60

Product Code: RHF60

RHF fuse link is specifically designed for the protection of domestic service installations. Breaking capacity is tested up to 33 kA. Rated current and voltages are accordingly 60A, 415VAC.

Technical Specifications

Body Style Cylindrical
Breaking Capacity AC (kA) 33
Clearing I²t at Rated Voltage (kA²s) 19.2
Optical Defect Indication No
Power Dissipation at In (W) 4.8
Utilisation Category gG
With Striker No
Brand IPD
Breaking Capacity (kA) 33
Current Rating (A) 60
Diameter (mm) 22
Dimensions (mm) 22D x 57L
Pack Quantity 10
Rated Current (A) 60
Rated Voltage AC (V) 415
Standards AS60269-3
Standards and Approvals IEC 60269-3, BS 1361
