Industrial Fuse Links

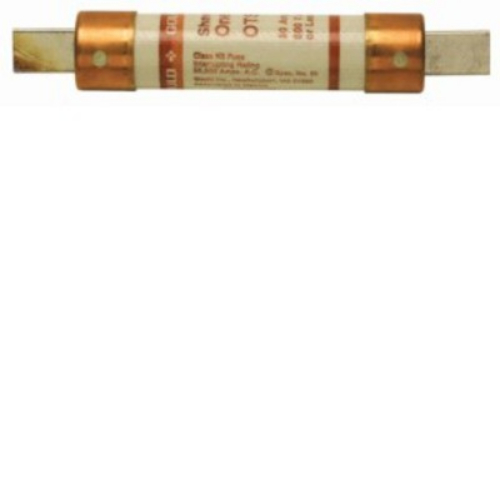

MERSEN OTS200 FUSE LINK 200A 600VAC/300VDC UL CLASS K-5 46X174mm BLADE

Product Code: OTS200

The One-Time OTS general purpose fuses offer affordable protection for feeder and branch-circuits that supply power to lighting, heating, and other non-motor loads. These fuses have a voltage rating of 600VAC/300VDC and a rated current of 200A. They are UL listed to standard 248-14.

Technical Specifications

Brand MERSEN
Body Style Blade
Fuse Class Class K-5
Interrupting Rating AC (kA) 50
Interrupting Rating DC (kA) 20
Body Size (mm) 46 x 174
Functionality General Purpose
Rated Current (A) 200
Rated Voltage AC (V) 600
Rated Voltage DC (V) 300
