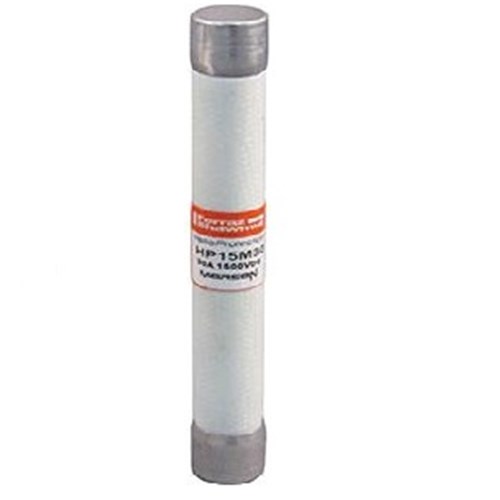

MERSEN FUSE LINK 5A 1500V DC gPV 10X85mm FERRULE TYPE HP15M5

Product Code: HP15M5

The HP15M photovoltaic (PV) fuse is a 10x85mm fuse designed specifically for protecting PV string wiring in utility scale photovoltaic systems operating at 1500VDC. With a minimum breaking capacity of 1.35xIn, the HP15M fuse ensures safe circuit interruption even under low fault current conditions commonly found in PV arrays. This fuse is suitable for all photovoltaic applications, including PV string/array level protection.

Technical Specifications

Brand MERSEN
Diameter (mm) 10
Interrupting Rating (kA) 50
Length (mm) 85
Pack Quantity 10
Power Loss (W) 1.97
Rated Current (A) 5
Rated Voltage DC (V) 1500
Standards IEC 60269-6
Terminal Material Tin-Plated Copper
Terminal Type Ferrule
Utilization Category gPV
