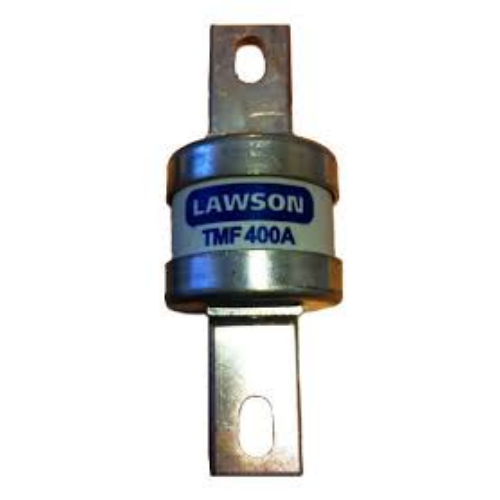

IPD TMF400 FUSE LINK 400A 690VAC CENTRE TAG 111mm FIXING CENTRES 80kA 400335

TMF centre bolted tags-2hole fixing BS fuse links are designed for general industrial applications. They come in sizes B1 to B4, C1 to C3, and D1. These fuse links comply with the standard BS88-2 and IEC 60269-2. They have a breaking range and utilisation category of gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. The rated current is 400A, and the voltages are 690VAC/460VDC.
