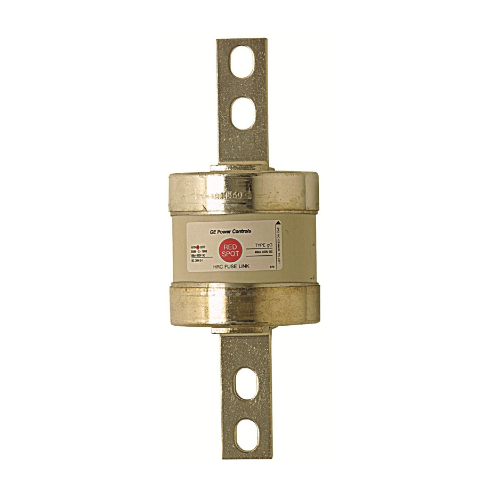

IPD TM355 FUSE LINK 355A 690VAC CENTRE TAG 133/184mm FIXING CENTRES 80kA USE IN RS400/CM/CMS, 400331

TM centre bolted tags-4hole fixing BS fuse links are ideal for safeguarding general industrial applications. These fuse links, available in sizes B1 to B4, C1 to C3, and D1, adhere to the standard specifications of BS88-2 and IEC 60269-2. They fall under the gG breaking range and utilisation categories, ensuring effective peak and let-through current limitation. With an impressive breaking capacity of 80 kA certified by ASTA 20, these fuse links can handle rated currents up to 355A at voltages of 690VAC/460VDC.
