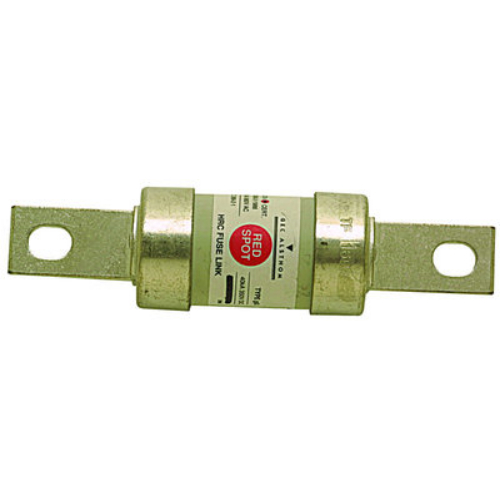

IPD TF200M315 FUSE LINK 315A 550VAC CENTRE TAG MOTOR RATED 111mm FIXING CENTRES 80kA B2 USE IN RS200/CM/CMS, 400286

TF centre bolted tags-2hole fixing BS fuse links are designed for general industrial applications. They come in sizes B1 to B4, C1 to C3, and D1. These fuse links comply with the standard BS88-2 and IEC 60269-2. They have a breaking range and utilisation categories of gM, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. The rated current is 315A and the voltage is 550VAC.
