Industrial Fuse Links

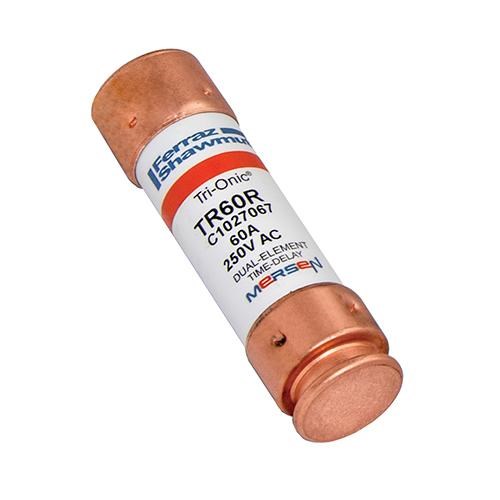

MERSEN TR60R FUSE LINK 60A 250VAC CLASS RK-5 DELAY 21X76mm REJECTION FERRULE

Product Code: TR60R

The TR-R current-limiting time-delay rejection ferrule type fuses are designed to provide overcurrent protection for motors, transformers, service entrance equipment, feeders, and branch-circuits. These fuses have a time-delay characteristic that can safely handle the harmless starting currents and inrush currents typically associated with motors and transformers. They have a voltage rating of 250VAC and a rated current of 60A.

Technical Specifications

Body Style Ferrule
Fuse Class Class RK5
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 20
Brand MERSEN
Body Size (mm) 21 x 76
Functionality Time Delay
Rated Current (A) 60
Rated Voltage AC (V) 250
Rated Voltage DC (V) 250
