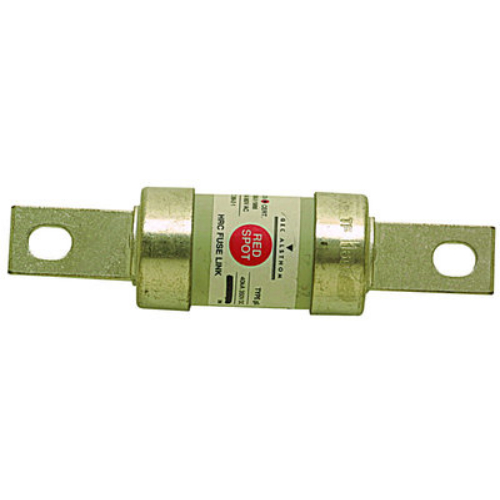

IPD TF200M250 FUSE LINK 250A 690VAC CENTRE TAG MOTOR RATED 111mm FIXING CENTRES 80kA B2 USE IN RS200/CM/CMS, 400285

TF centre bolted tags-2hole fixing BS fuse links are ideal for safeguarding general industrial applications. These fuse links, available in sizes B1 to B4 and C1 to C3 and D1, adhere to the standard BS88-2 and IEC 60269-2. They fall under the gM breaking range and utilisation categories, ensuring efficient peak and let-through current limitation. With a breaking capacity of AC: ASTA 20 certified to 80 kA, these fuse links can handle rated currents of up to 250A and voltages of 690VAC/460VDC.
