Product Code: HP10M20

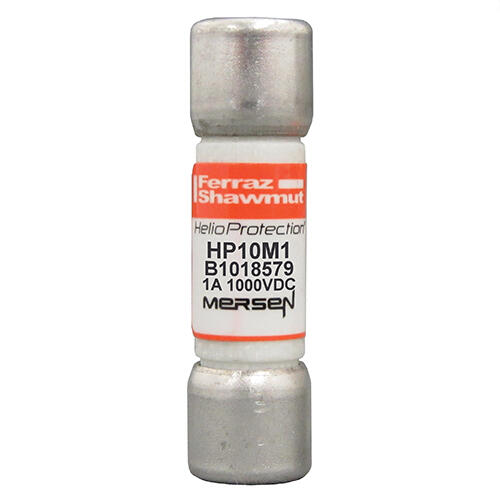

The HP10M photovoltaic (PV) fuse is a 10x38mm fuse designed specifically for protecting PV string wiring in industrial rooftop and utility scale photovoltaic systems with a voltage rating of 1000VDC. It has a minimum breaking capacity of 1.35 times the nominal current (In), ensuring safe circuit interruption even under low fault current conditions commonly found in PV arrays. The HP10M fuse is suitable for all photovoltaic applications, including PV string/array level protection.

Brand	MERSEN
Diameter (mm)	10
Interrupting Rating (kA)	50
Length (mm)	38
Maximum Fuse Rating (A)	27
Pack Quantity	10
Power Loss (W)	2.8
Rated Current (A)	20
Rated Voltage DC (V)	1000
Standards and Approvals	IEC 60269-6 Approved (CB Tested)
Suitable Fuse Holder	CUS101
Terminal Material	Tin-Plated Copper
Terminal Type	Ferrule
Utilization Category	gPV

Photovoltaic Isolators & Protection

MERSEN FUSE LINK 20A 1000V DC gPV 10X38mm FERRULE TYPE HP10M20
