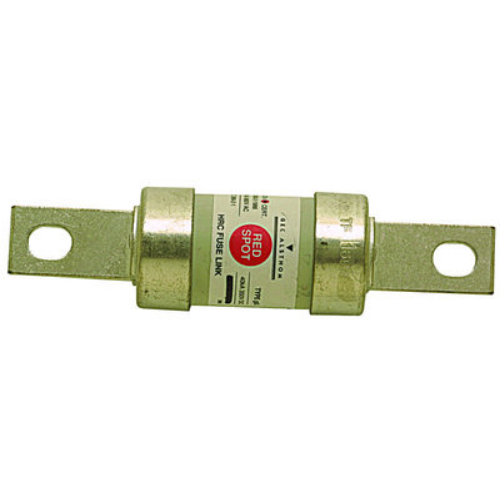

IPD TF200 FUSE LINK 200A 690VAC CENTRE TAG 111mm FIXING CENTRES 80kA B2 USE IN RS200/CM/CMS, 400284

TF centre bolted tags-2hole fixing BS fuse links are ideal for safeguarding general industrial applications. These fuse links, available in sizes B1 to B4, C1 to C3, and D1, adhere to the standard BS88-2 and IEC 60269-2. They fall under the gG breaking range and utilisation categories, ensuring efficient peak and let-through current limitation. With an AC breaking capacity certified by ASTA 20 at 80 kA, these fuse links can handle rated currents of up to 200A and voltages of 690VAC/350VDC.
