Industrial Fuse Links

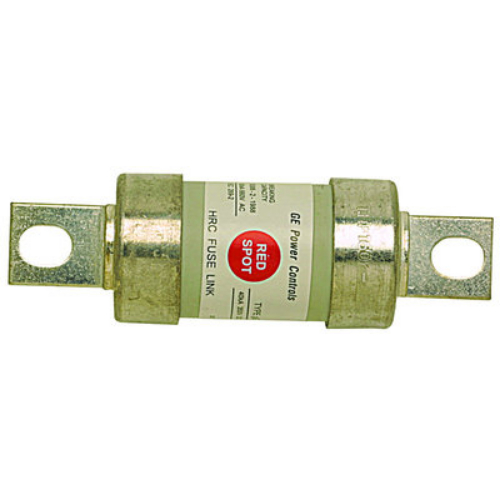

IPD FUSE LINK 160A 690VAC OFF-SET TAG 94mm FIXING 80kA, 400288 TFP160

Product Code: TFP160

TFP offset bolted tags-2hole fixing BS fuse links (in sizes A1 to A4) are designed for general industrial applications. They comply with the standard BS88-2 and IEC 60269-2. The breaking range and utilisation categories are gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. These fuse links have a rated current of 160A and can handle voltages of 690VAC/350VDC.

Technical Specifications

Body Diameter (mm) 34.9
Breaking Capacity AC (kA) 80
Breaking Capacity DC (kA) 40
Fuse Shape Offset slotted bolted tags
Fuse Type BS88/A4
Insulated Metal Gripping Lugs No
Utilisation Category gG
Voltage Type AC/DC
Brand IPD
Fixing Centres (mm) 94
Maximum Ambient Temperature (°C) 40
Pack Quantity 5
Rated Current (A) 160
Rated Voltage AC (V) 690
Rated Voltage DC (V) 350
Standards BS 88-2, AS 60269, IEC 269-2-1, ASTA20
Suitable Fuse Holder RSM160
