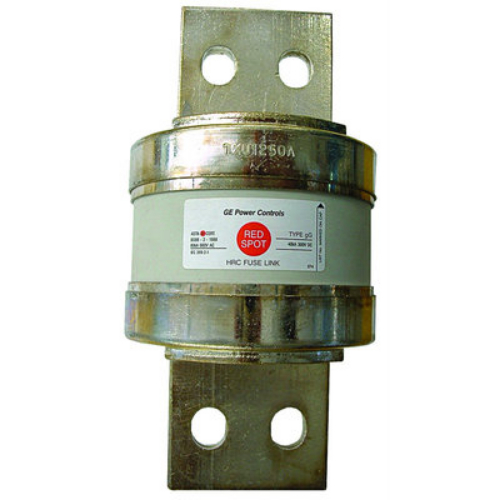

IPD TXU1250 FUSE LINK 1250A 550VAC CENTRE TAG 149mm FIXING CENTRES 80kA D1 TYPE 400357

Product Code: TXU1250

TXU centre bolted tags-4hole fixing BS fuse links (size D1) are designed for general industrial applications. They comply with standard BS88-2 and IEC 60269-2. The breaking range and utilisation categories are gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. These fuse links have a rated current of 1250A and can handle voltages up to 550VAC/300VDC.

Technical Specifications

Body Diameter (mm) 101.6
Breaking Capacity AC (kA) 80
Breaking Capacity DC (kA) 40
Utilisation Category gG
Brand IPD
Carton Quantity 1
Fixing Centres (mm) 149
Rated Current (A) 1250
Rated Voltage AC (V) 550
Rated Voltage DC (V) 300
