Industrial Fuse Links

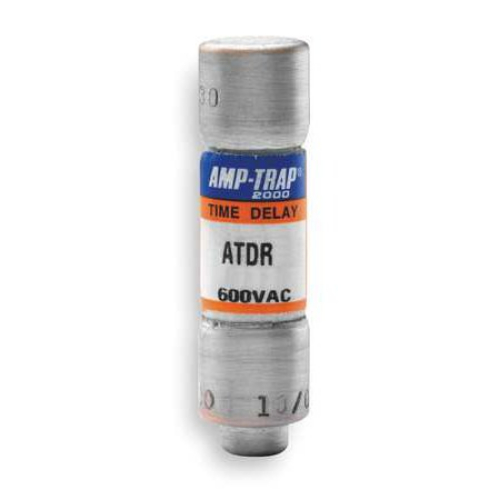

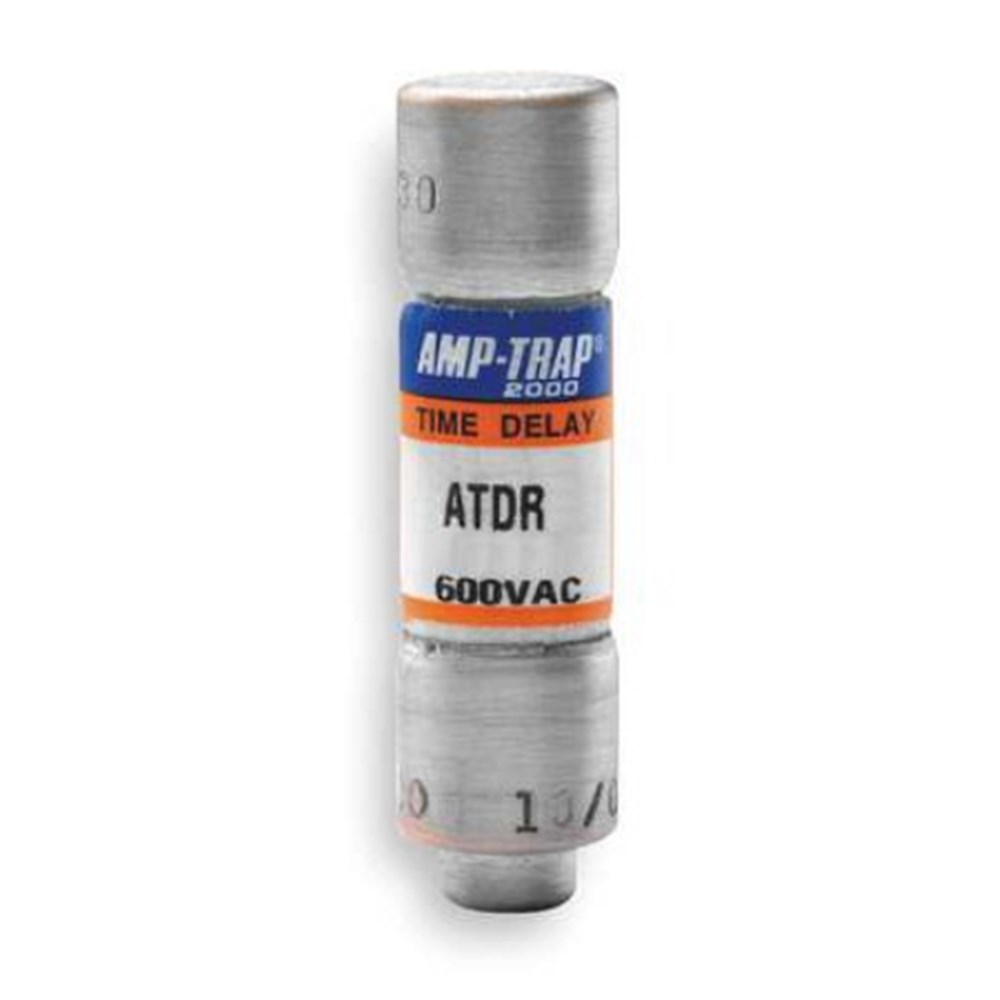

MERSEN ATDR10 FUSE LINK 10A 600VAC/300VDC DELAY 10X38mm 200kA REJECTION CLASS CC FOR SMALL MOTORS

Product Code: ATDR10

ATDR small-dimension fuses offer IEC Type 2 No Damage protection for sensitive branch circuit components and small motors. These Class CC fuses have the best time-delay characteristics in their class and are highly reliable for small motor loads. They have a voltage rating of 600VAC/300VDC and a rated current of 10A. These fuses can handle short circuit currents up to 200kA/AC and 100kA/DC, ensuring optimal safety for your facility.

Technical Specifications

Body Style Rejection
Fuse Class Class CC
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Brand MERSEN
Body Size (mm) 10 x 38
Functionality Time Delay
Rated Current (A) 10
Rated Voltage AC (V) 600
Rated Voltage DC (V) 300
