Industrial Fuse Links

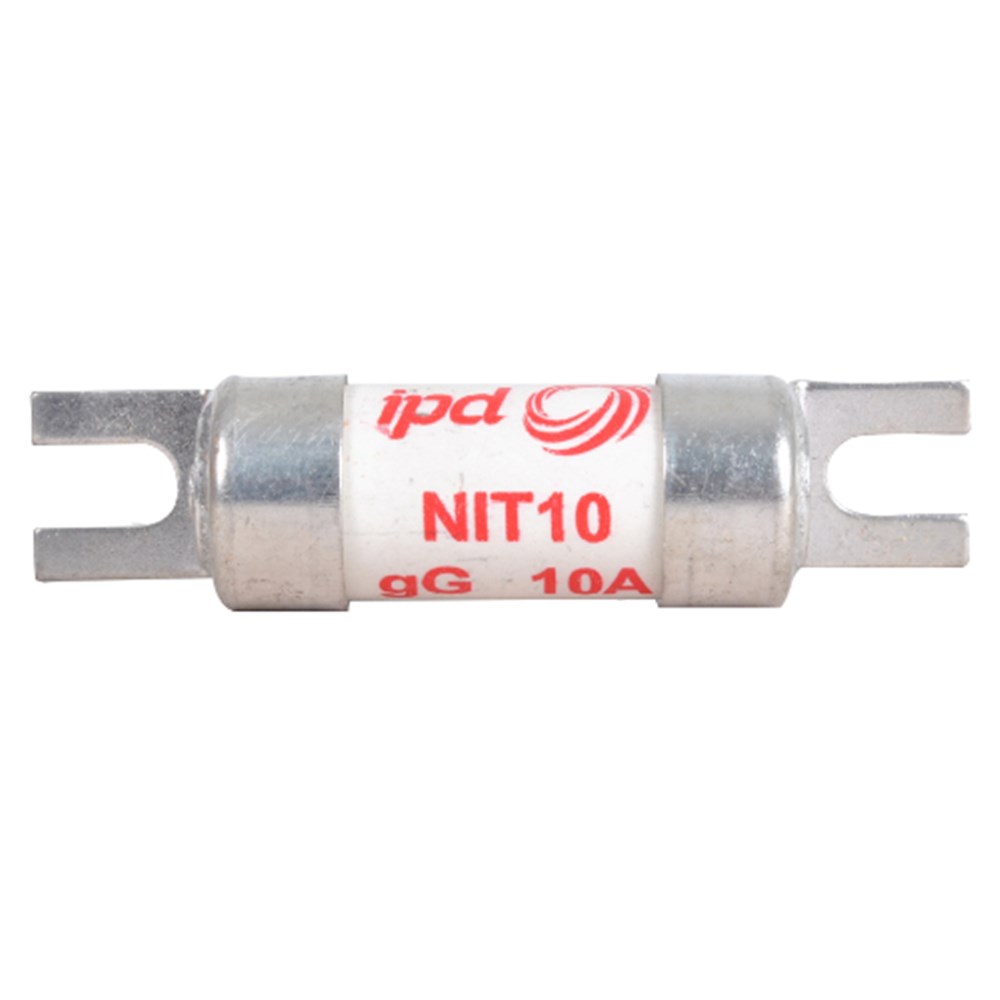

IPD FUSE LINK 10A 550VAC OFF-SET TAG 44.5mm FIXING 80kA A1, 401225 NIT10

Product Code: NIT10

The NIT offset bolted tags-2hole fixing BS fuse links (available in sizes A1 to A4) are designed for general industrial applications. They comply with the standard BS88-2 and IEC 60269-2. These fuse links have a breaking range and utilisation category of gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified up to 80 kA. They have a rated current of 10A and can handle voltages of 550VAC/250VDC.

Technical Specifications

Body Diameter (mm) 14.1
Breaking Capacity AC (kA) 80
Breaking Capacity DC (kA) 40
Fuse Shape Offset slotted bolted tags
Fuse Type BS88/A1
Insulated Metal Gripping Lugs No
Utilisation Category gG
Voltage Type AC/DC
Brand IPD
Dimensions (mm) Ø13.5W x 14.5H x 56D
Fixing Centres (mm) 44.5
Maximum Ambient Temperature (°C) 40
Pack Quantity 10
Rated Current (A) 10
Rated Voltage AC (V) 550
Rated Voltage DC (V) 250
Standards BS 88-2, AS 60269, IEC 269-2-1, ASTA20
Suitable Fuse Holder RS20 & RSM32
Weight (kg) 0.0159
