Industrial Fuse Links

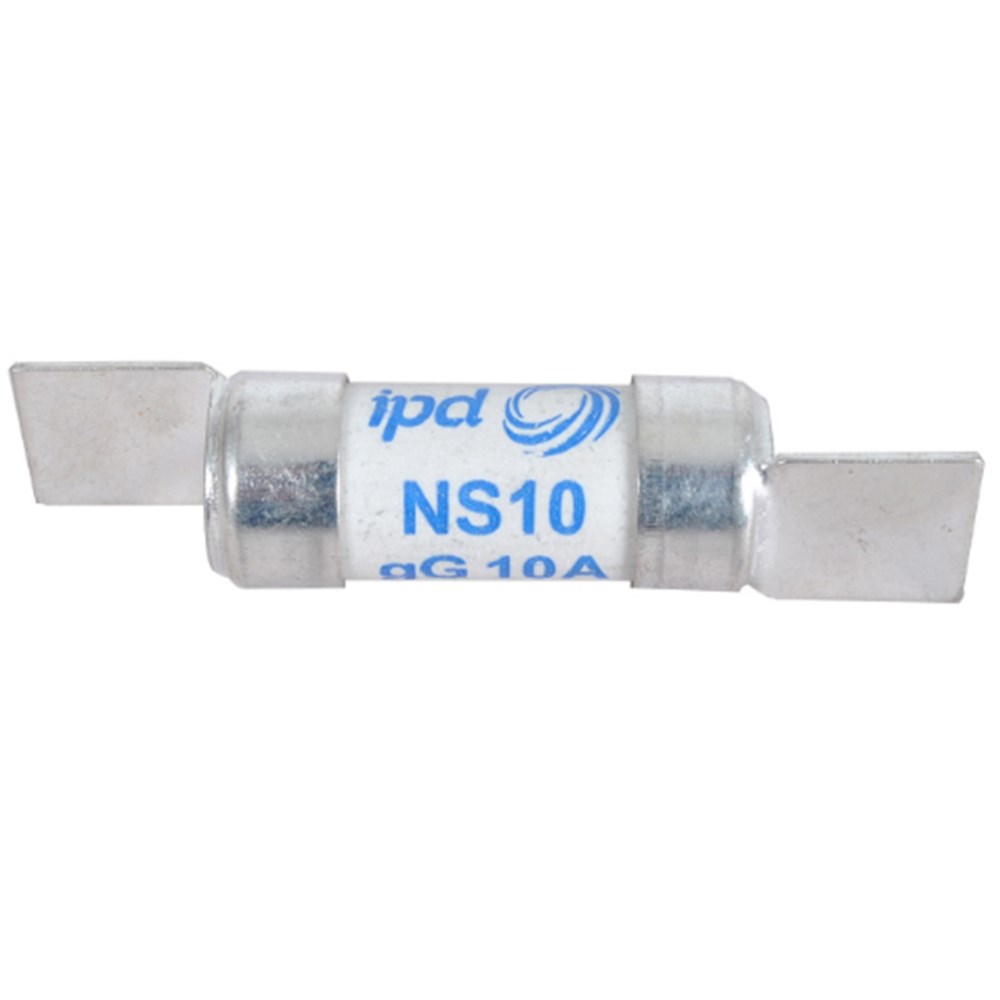

IPD FUSE LINK 10A 415VAC 80kA F1 CLIP-IN BS88 TYPE NS10

Product Code: NS10

The NS Clip-in (F1) BS fuse links are designed for general purpose applications. They have a breaking capacity of up to 80 kA and are rated for a current of 10A and voltages of 415VAC/240VDC. These fuse links are suitable for gG/gM utilization categories.

Technical Specifications

Breaking Capacity AC (kA) 80
Breaking Capacity DC (kA) 40
Fuse Construction Type F1
Total Length (mm) 59
Utilisation Category Gg
Brand IPD
Connection Type Clip-In
Diameter (mm) 13.5
Pack Quantity 10
Rated Current (A) 10
Rated Voltage AC (V) 415
Rated Voltage DC (V) 240
Standards and Approvals IEC 60269, BS88 Part 6
Suitable Fuse Holder SC20/S32
