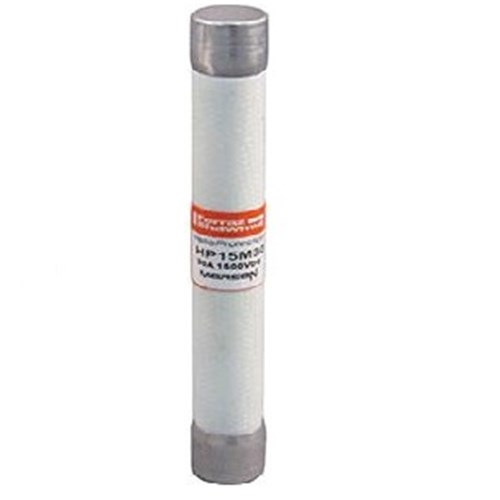

MERSEN FUSE LINK 10A 1500V DC gPV 10X85mm FERRULE TYPE HP15M10

Product Code: HP15M10

The HP15M photovoltaic (PV) fuse is a 10x85mm fuse designed specifically for the protection of PV string wiring in 1500VDC utility scale photovoltaic systems. With a minimum breaking capacity capability of 1.35xIn, this fuse ensures safe circuit interruption even under low fault current conditions commonly found in PV arrays. It is suitable for all photovoltaic applications, including PV string/array level protection.

Technical Specifications

Brand MERSEN
Diameter (mm) 10
Interrupting Rating (kA) 50
Length (mm) 85
Pack Quantity 10
Power Loss (W) 3.1
Rated Current (A) 10
Rated Voltage DC (V) 1500
Standards IEC 60269-6
Terminal Material Tin-Plated Copper
Terminal Type Ferrule
Utilization Category gPV
