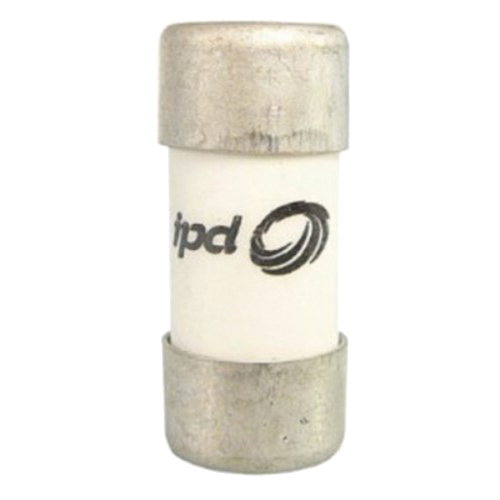

IPD CONSUMER UNIT FUSE-LINK, FERRULE TYPE 415V AC 22x57mm 100A RHB100

Product Code: RHB100

The RHB fuse link is designed to protect domestic service installations. It has a breaking capacity tested up to 33 kA. The rated current is 100A and the rated voltage is 415VAC.

Technical Specifications

Brand IPD
Body Style Cylindrical
Breaking Capacity AC (kA) 33
Optical Defect Indication No
Power Dissipation at In (W) 5.8
Utilisation Category gG
With Striker No
Breaking Capacity (kA) 33
Current Rating (A) 100
Diameter (mm) 22
Dimensions (mm) 22D x 57L
Rated Current (A) 100
Rated Voltage AC (V) 415
Standards AS60269-3
Standards and Approvals IEC 60269-3, BS 1361
