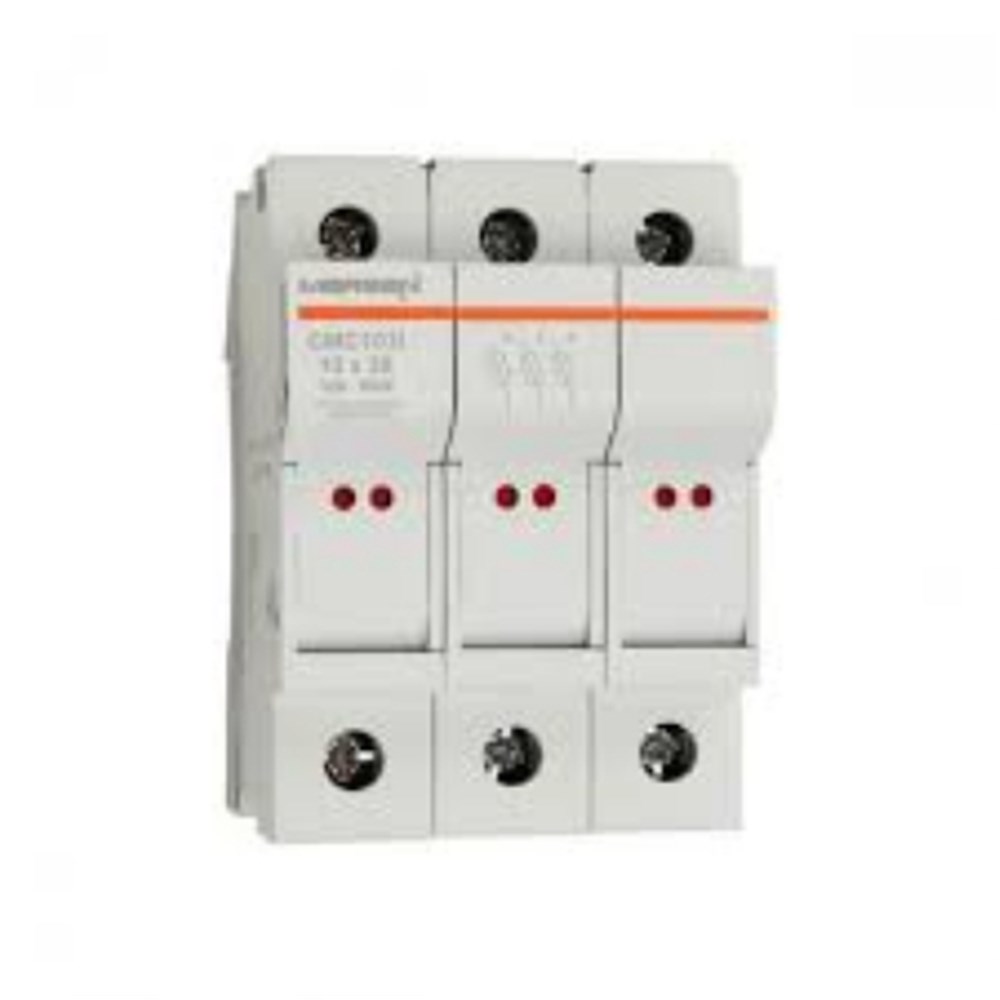

MERSEN CMC103 FUSE HOLDER 32A 690VAC 3P DIN MOUNT MAXIMUM CABLE 16mm² 10X38mmE1062696

Product Code: CMC103

The CMC10 fuse holders are designed to provide finger-safe and compact protection for motors, transformers, and other industrial applications. These IEC cylindrical, modular fuse holders have a degree of protection up to IP20 and can be padlocked in the open position. They comply with standards IEC269-2-1, BS88-1, and AS60269. The CMC10 has 3 poles and is rated for a current of 32A and a voltage of 690VAC.

Technical Specifications

CAD Block https://media.bluestonepim.com/50098aaa-684d-40aa-945d-038656764549/2e261049-d25e-421a-859a-d69ef7dcf5a0/fVIP18uSiuTIj07wIp8q9roXm/WjiHIWccQyNHCexmVFAcWwBCJ.dwg?targetFileName=CAD%20Block.dwg
Brand MERSEN
Degree of Protection IP20
Fuse Size (mm) 10 x 38
Maximum Cable Entry (mm²) 16
Mounting Type DIN Rail
No. of Poles 3P
Rated Current (A) 32
Rated Voltage AC (V) 690
