Fuse Fittings

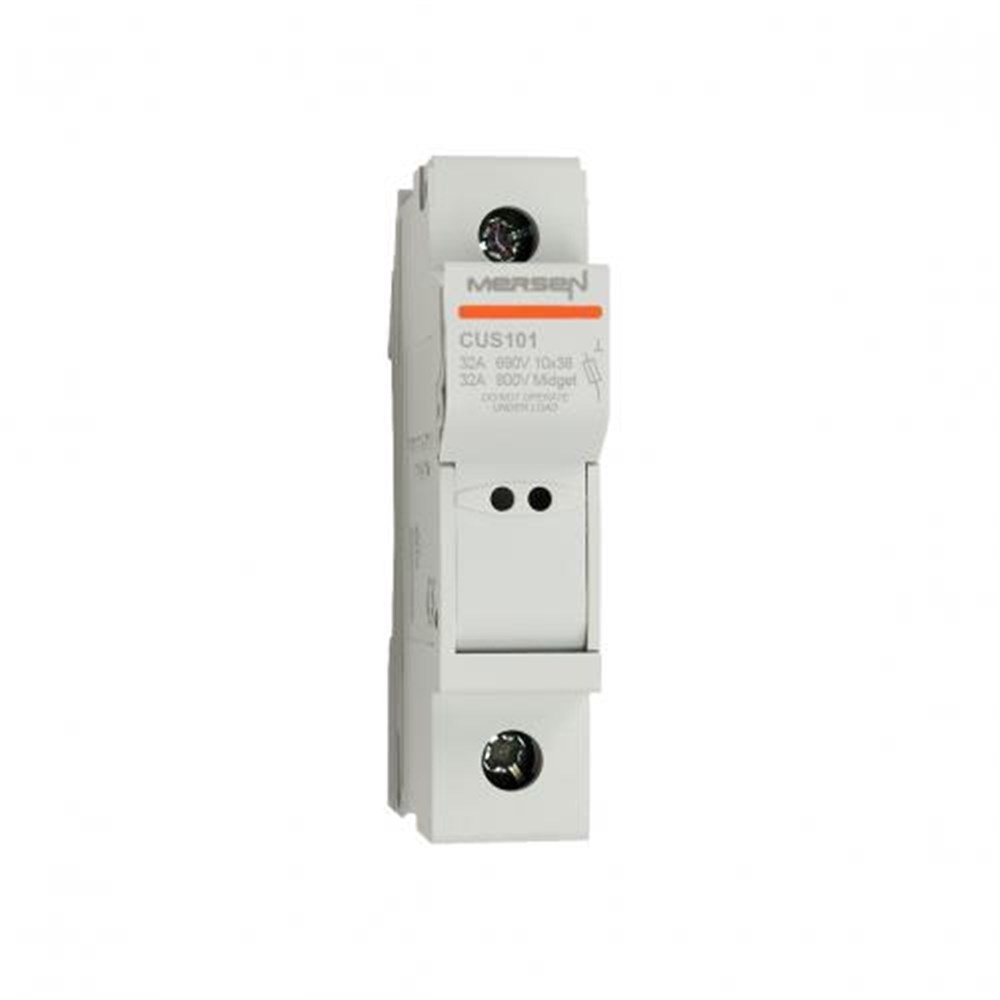

MERSEN CUS101 FUSE HOLDER 32A 1P 1000VDC SUIT 10 X 38mm FUSE

Product Code: CUS101

CUS10 is a finger-safe and compact modular fuse holder that complies with IEC, UL, and CSA standards. It is specifically designed to protect motors, transformers, and other industrial applications. The CUS10 has a degree of protection up to IP20 and features padlocking in the open position. It has one pole and a rated current of 32A with a voltage rating of 1000VDC. The CUS10 meets the standards IEC269-2-1, BS88-1, and AS60269.

Technical Specifications

Brand MERSEN
Degree of Protection IP20
Fuse Size (mm) 10 x 38
Maximum Cable Entry (mm²) 10
Mounting Type DIN Rail
No. of Poles 1P
Rated Current (A) 32
Rated Voltage AC/DC (V) 690-1000
Rated Voltage DC (V) 1000
Suitable For Cylindrical Fuse Links 10 x 38
