Fuse Fittings

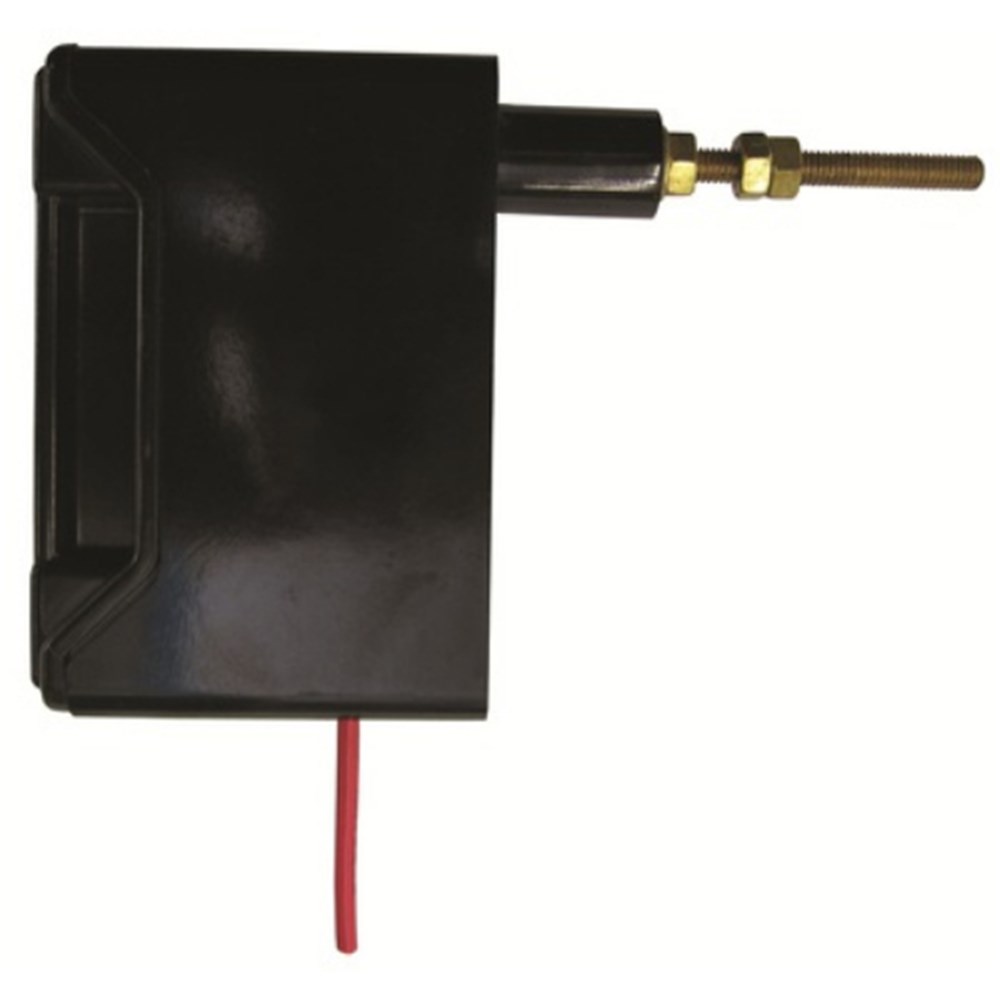

IPD LV FUSE FITTING 63A RS BLACK 1STUD FRONT/BACK CONNECTED USE TIA/TIS FUSE LINKS, 402196 RS63PH

Product Code: RS63PH

The RS_PH 1 stud front/back connected LV fuse fittings (black) are IP20 finger-safe fuse holders. They are designed to protect utility and industrial installations. These fuse fittings have an anti-vibration feature that ensures perfect carrier contact alignment and superior electrical contact. They meet the standards of BS88-2, AS60269, and IEC269-2-1. The rated current is 63A and the rated voltage is 690VAC.

Technical Specifications

Brand IPD
Colour Black
Connection Type Front/Back Wire
Degree of Protection IP20
Dimensions (mm) 35Wx110Hx75D
Fixing Centres (mm) 73
Maximum Cable Entry (mm²) 50
Mounting Type Screw-On
Pack Quantity 10
Rated Current (A) 63
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable For TIS, TIS
Type Fuse Fitting
