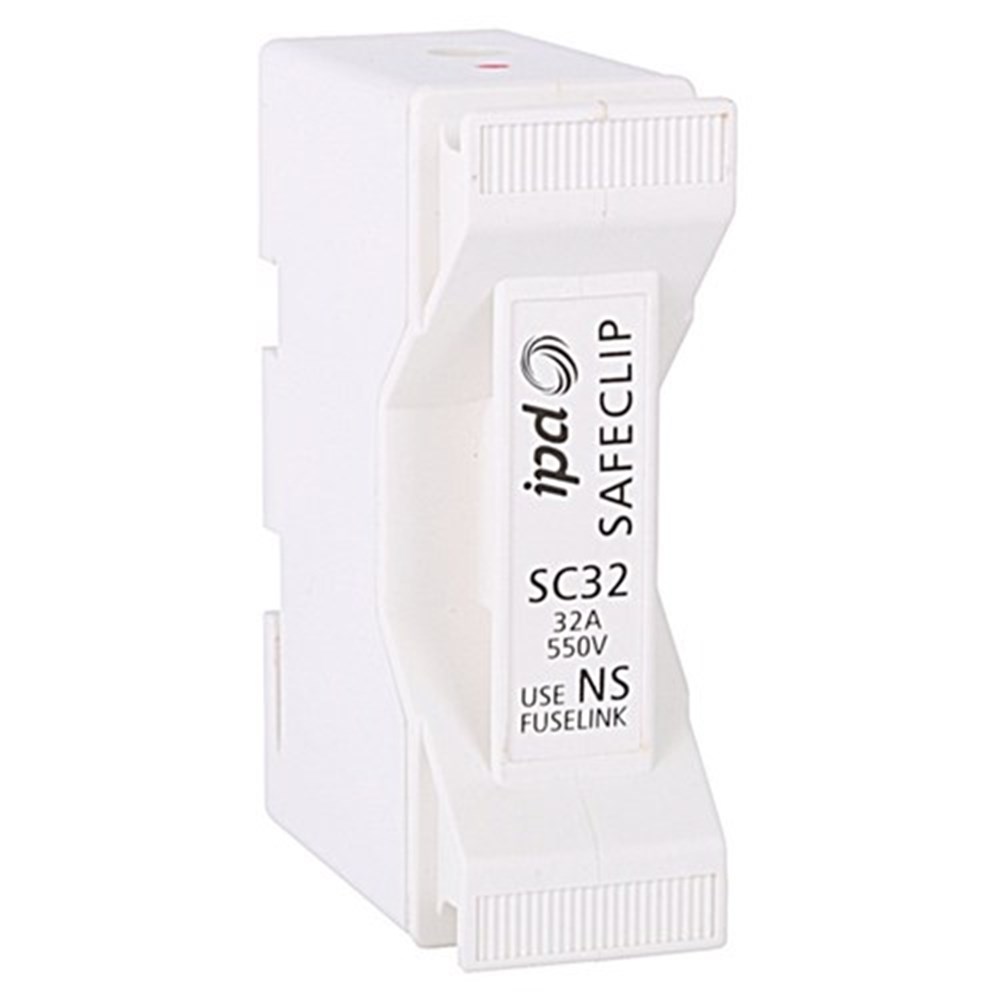

IPD SC32HWH FUSE FITTING 32A SAFECLIP FRONT WIRE, WHITE USE SC20/32LINK FOR NEUTRAL

Product Code: SC32HWH

The SC_HWH front connected clip-in LV fuse fittings (white) are IP20 finger-safe fuse holders specifically designed for protecting utility and industrial installations. These fuse fittings have self-cleaning and self-aligning base contacts, making them easy to maintain. They can be mounted on a DIN rail using the easily removable carrier. The SC_HWH fuse fittings comply with the standards BS88-1 & 6, AS60269, and IEC269-2-1. They have a rated current of 32A.

Technical Specifications

Breaking Capacity AC (kA) 80
Brand IPD
Body Size (mm) 75.5H x 26.5W x 54D
Carton Quantity 10
Colour White
Connection Type Front Wire
Degree of Protection IP20
Mounting Type DIN Rail
Rated Current (A) 32
Rated Voltage AC (V) 415
Suitable Type of Neutral Link SC20/32LINK
