Fuse Fittings

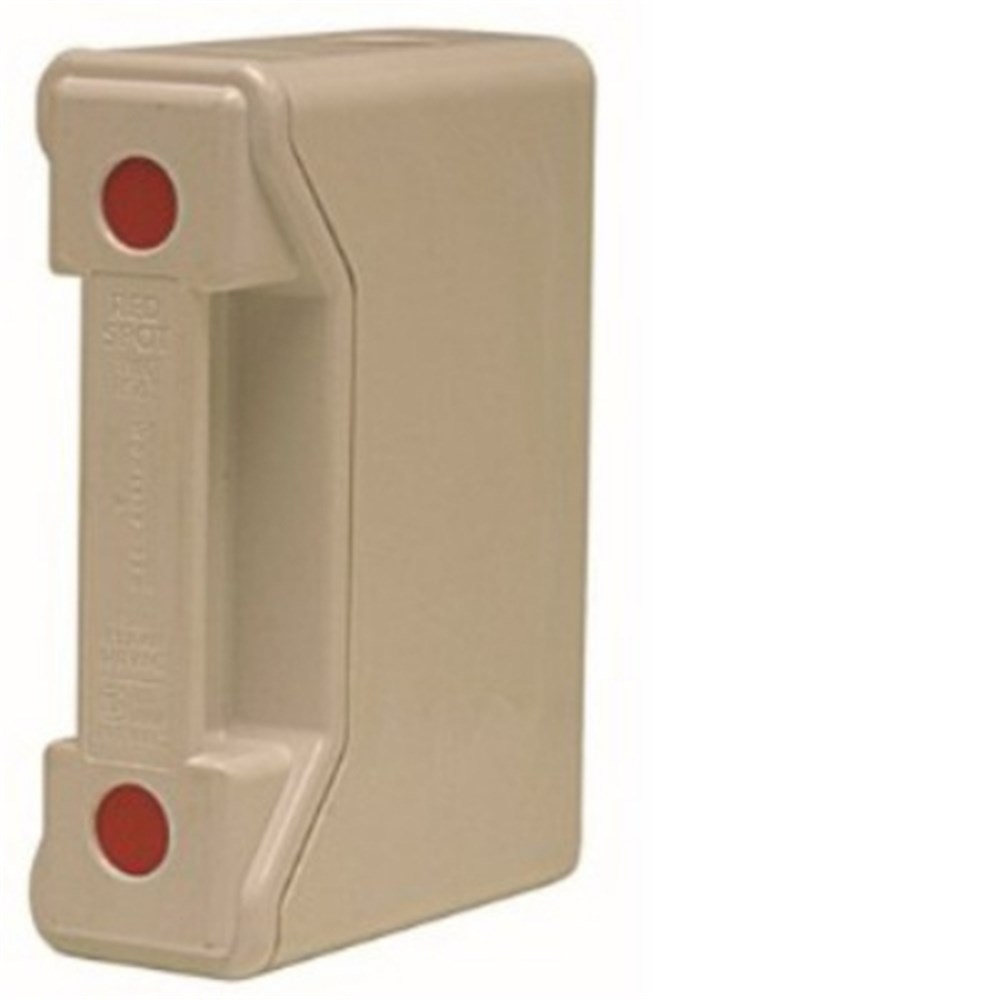

IPD LV FUSE FITTING 32A RS WHITE FRONT CONNECTED USE RS32CLINK, 402175 RS32HWH

Product Code: RS32HWH

The RS_HWH front connected LV fuse fittings (white) are IP20 finger-safe fuse holders specifically designed for protecting utility and industrial installations. These fuse fittings have an anti-vibration feature that ensures perfect carrier contact alignment and superior electrical contact. They adhere to the standards of BS88-2, AS60269, and IEC269-2-1. The rated current for these fuse fittings is 32A, with a voltage rating of 690VAC.

Technical Specifications

Brand IPD
Colour White
Connection Type Front
Degree of Protection IP20
Dimensions (mm) 32Wx103Hx70D
Fixing Centres (mm) 73
Maximum Cable Entry (mm²) 16
Mounting Type Screw-On
Pack Quantity 10
Rated Current (A) 32
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable Type of Neutral Link RS32CLINK
Type Fuse Fitting
