Fuse Fittings

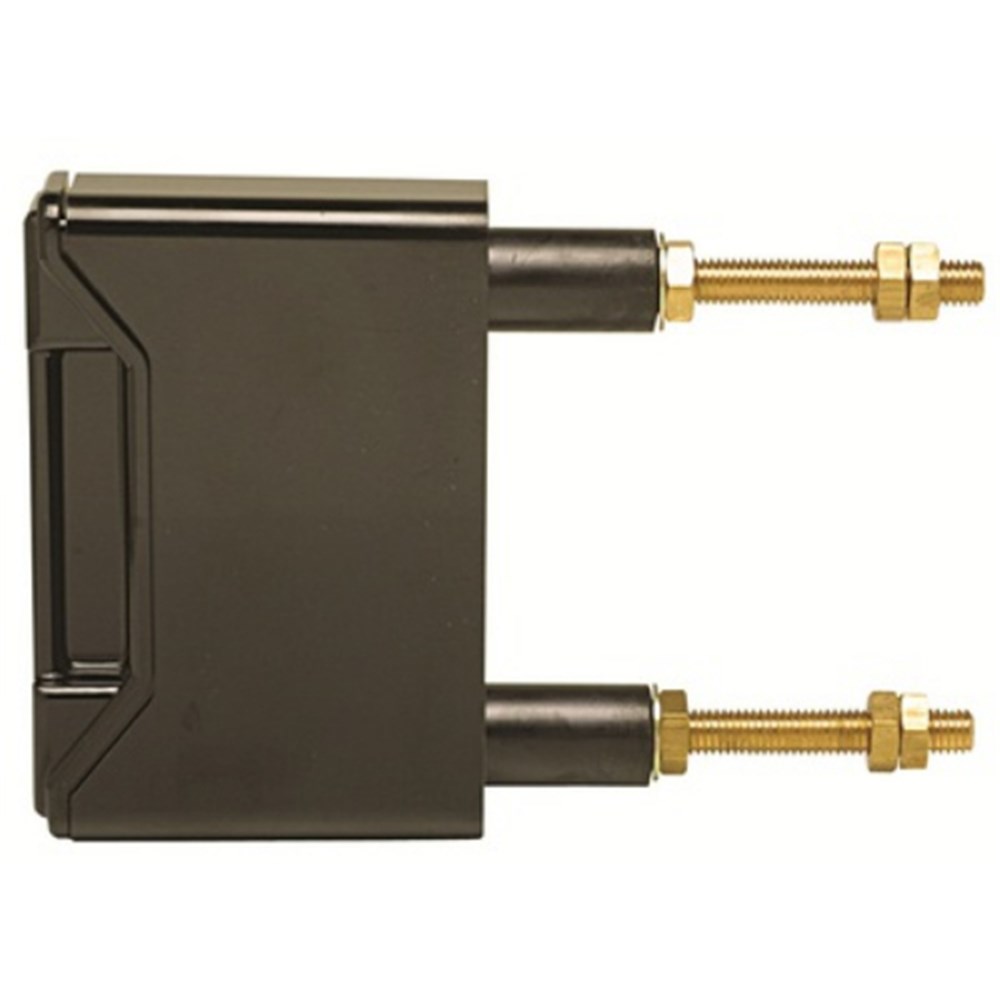

IPD LV FUSE FITTING 32A RS BLACK 2STUD BACK CONNECTED USE TIA FUSE LINKS 402178 RS32P

Product Code: RS32P

RS_P 2 stud back connected LV fuse fittings (black) are a range of IP20 finger-safe fuse holders designed for the protection of utility and industrial installations. Anti-vibration feature to ensure perfect carrier contact alignment & superior electrical contact. Standard BS88-2, AS60269,IEC269-2-1. Rated current and voltage are accordingly 32A , 690VAC

Technical Specifications

Brand IPD
Colour Black
Connection Type Back Connected, 2 Stud
Degree of Protection IP20
Dimensions (mm) 32Wx103Hx70D
Fixing Centres (mm) 73
Maximum Cable Entry (mm²) 25
Mounting Type Screw-On
Pack Quantity 10
Rated Current (A) 32
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable For TIA
Type Fuse Fitting
