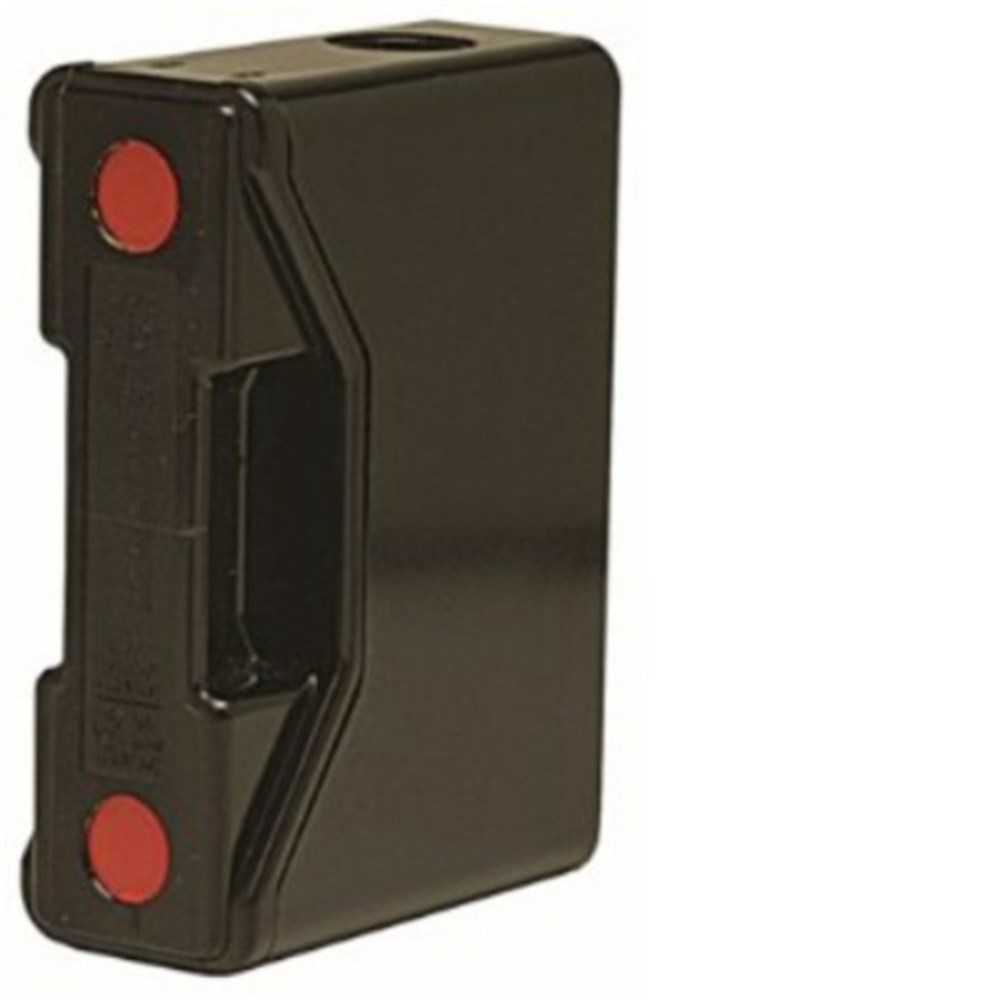

IPD LV FUSE FITTING 200A RS BLACK FRONT CONNECTED USE TBC/TC/TF FUSES, 402148 RS200H

Product Code: RS200H

The RS_H front connected LV fuse fittings (black) are IP20 finger-safe fuse holders specifically designed for protecting utility and industrial installations. These fuse fittings have an anti-vibration feature that ensures perfect carrier contact alignment and superior electrical contact. They comply with the standards BS88-2, AS60269, and IEC269-2-1. The rated current for these fuse fittings is 200A, and the rated voltage is 690VAC.

Technical Specifications

Brand IPD
Colour Black
Connection Type Front
Degree of Protection IP20
Dimensions (mm) 70Wx216Hx137D
Fixing Centres (mm) 111
Maximum Cable Entry (mm²) 120
Mounting Type Screw-On
Pack Quantity 1
Rated Current (A) 200
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable For TC, TF
Type Fuse Fitting
