Fuse Fittings

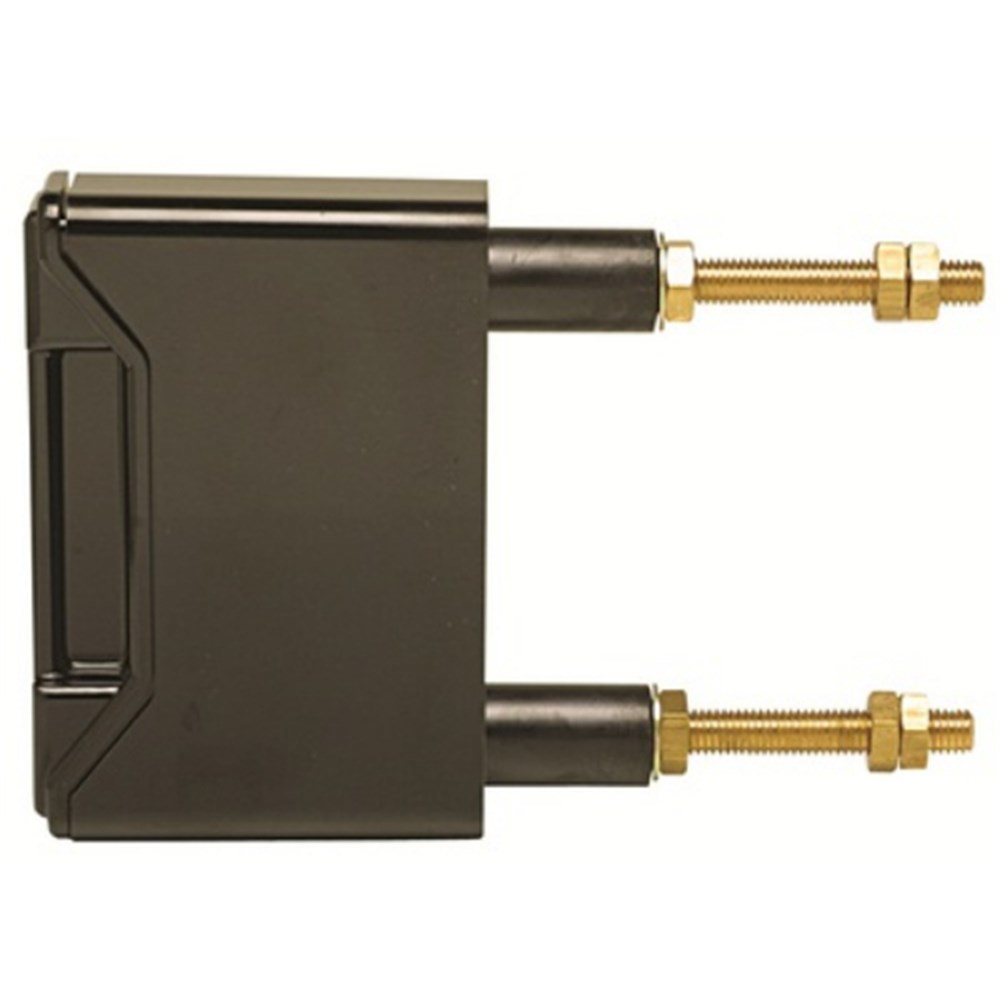

IPD LV FUSE FITTING 200A RS BLACK 2STUD BACK CONNECTED USE TBC/TC/TF FUSES, 402151 RS200P

Product Code: RS200P

RS_P 2 stud back connected LV fuse fittings (black) are a range of IP20 finger-safe fuse holders designed for the protection of utility and industrial installations. Anti-vibration feature to ensure perfect carrier contact alignment & superior electrical contact. Standard BS88-2, AS60269,IEC269-2-1. Rated current and voltage are accordingly 200A , 690VAC

Technical Specifications

Brand IPD
Colour Black
Connection Type Back Connected, 2 Stud
Degree of Protection IP20
Dimensions (mm) 70Wx216Hx137D
Fixing Centres (mm) 111
Maximum Cable Entry (mm²) 120
Mounting Type Screw-On
Pack Quantity 1
Rated Current (A) 200
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable For TC, TF
Type Fuse Fitting
