Fuse Fittings

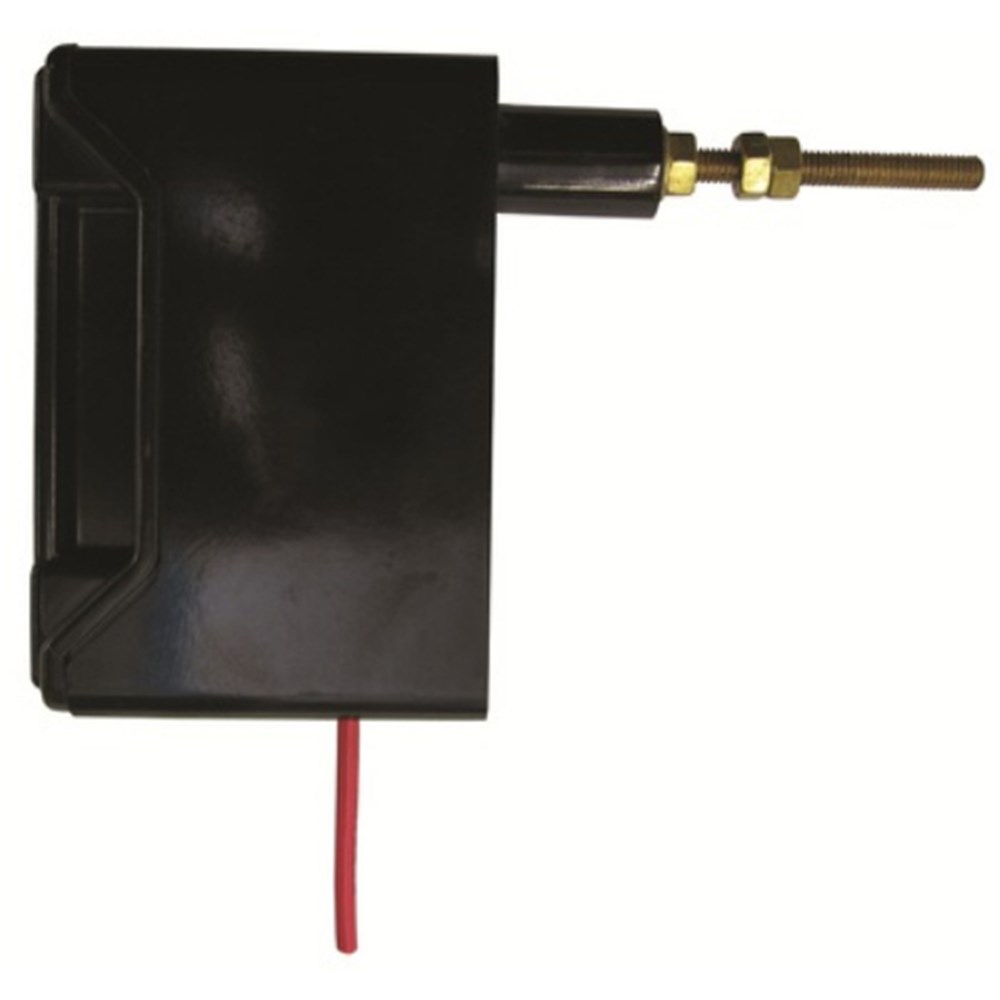

IPD LV FUSE FITTING 200A RS BLACK 1STUD FRONT/BACK CONNECTED USE TBC/TC/TF FUSES, 402153 RS200PH

Product Code: RS200PH

The RS_PH 1 stud front/back connected LV fuse fittings (black) are IP20 finger-safe fuse holders designed for utility and industrial installations. They provide protection and have an anti-vibration feature for perfect carrier contact alignment and superior electrical contact. These fuse fittings meet the standards of BS88-2, AS60269, and IEC269-2-1. They have a rated current of 200A and a voltage rating of 690VAC.

Technical Specifications

Brand IPD
Colour Black
Connection Type Front/Back connected, 1 stud
Degree of Protection IP20
Dimensions (mm) 70Wx216Hx137D
Fixing Centres (mm) 111
Maximum Cable Entry (mm²) 120
Mounting Type Screw-On
Pack Quantity 1
Rated Current (A) 200
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable For TC, TF
Type Fuse Fitting
