Fuse Fittings

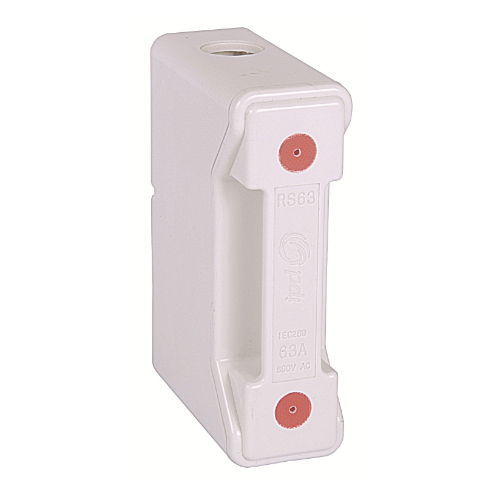

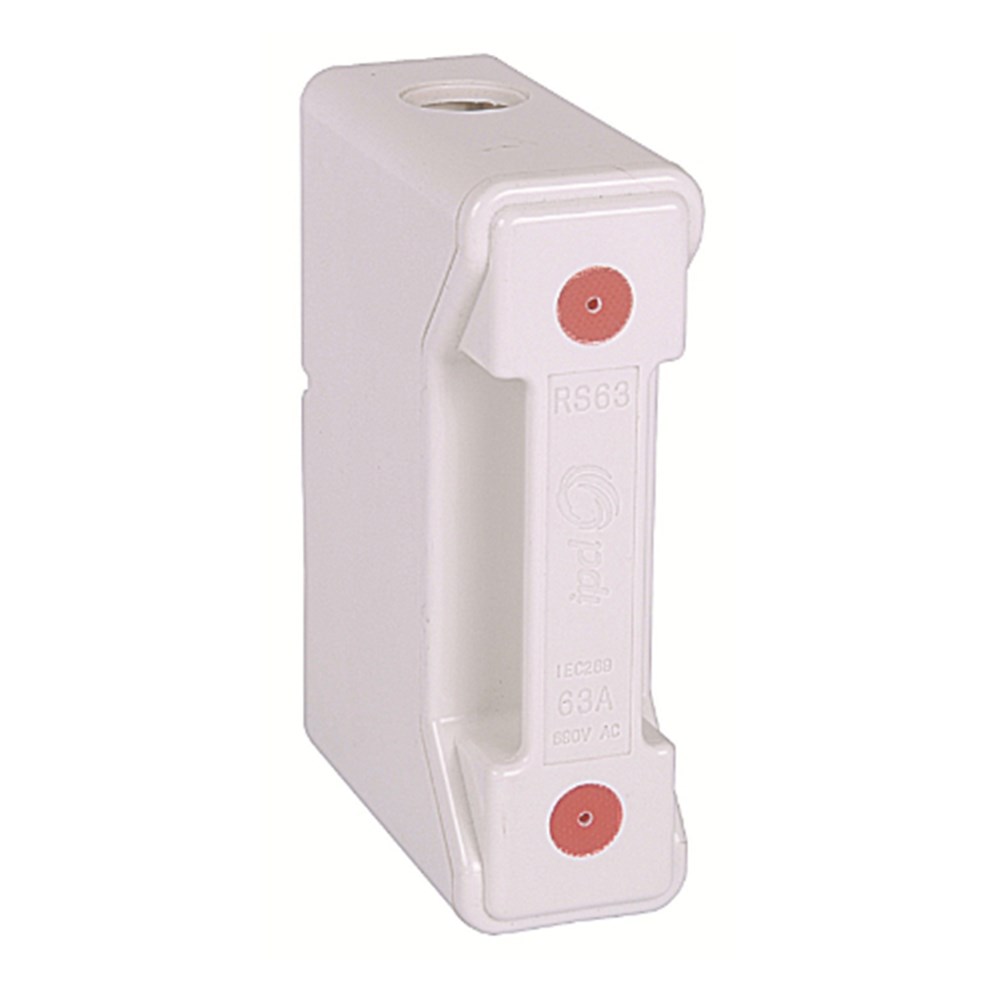

IPD LV FUSE FITTING 100A RS WHITE 2STUD BACK CONNECTED USE RS100CLINK, 402144 RS100PWH

Product Code: RS100PWH

The RS_PWH 2 stud back connected LV fuse fittings (white) are IP20 finger-safe fuse holders designed for utility and industrial installations. They have an anti-vibration feature to ensure perfect carrier contact alignment and superior electrical contact. These fuse fittings meet the standards of BS88-2, AS60269, and IEC269-2-1. They have a rated current of 100A and a voltage rating of 690VAC.

Technical Specifications

Brand IPD
Colour White
Connection Type Back Connected, 2 Stud
Degree of Protection IP20
Dimensions (mm) 51Wx140Hx100D
Fixing Centres (mm) 94
Maximum Cable Entry (mm²) 70
Mounting Type Screw-On
Pack Quantity 5
Rated Current (A) 100
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable Type of Neutral Link RS100CLINK
Type Fuse Fitting
