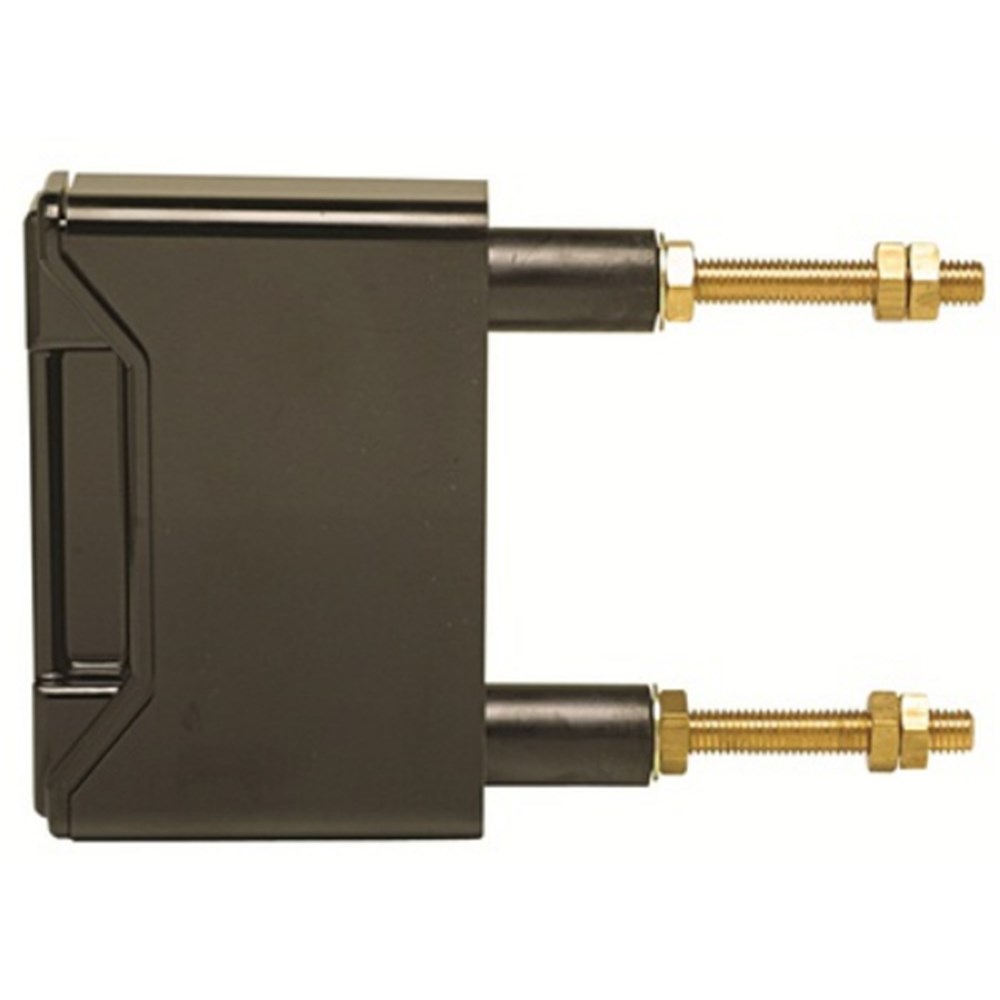

IPD LV FUSE FITTING 100A RS BLACK 2STUD BACK CONNECTED USE TCP FUSE LINKS, 402143 RS100P

Product Code: RS100P

The RS_P 2 stud back connected LV fuse fittings (black) are IP20 finger-safe fuse holders specifically designed for utility and industrial installations. These fuse fittings have an anti-vibration feature that ensures perfect carrier contact alignment and superior electrical contact. They comply with the standards BS88-2, AS60269, and IEC269-2-1. The rated current for these fuse fittings is 100A, and the rated voltage is 690VAC.

Technical Specifications

Brand IPD
Colour Black
Connection Type Back Connected, 2 Stud
Degree of Protection IP20
Dimensions (mm) 51Wx140Hx100D
Fixing Centres (mm) 94
Maximum Cable Entry (mm²) 95
Mounting Type Screw-On
Pack Quantity 5
Rated Current (A) 100
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable For TCP
Type Fuse Fitting
