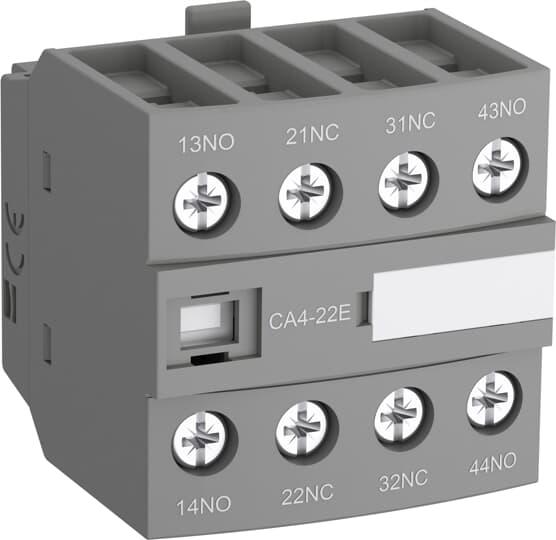

ABB CA4-22E AUXILIARY CONTACT BLOCK CA422E

Product Code: CA422E

CA4-22E is a 4-pole front mounted auxiliary contact block equipped with screw terminals. CA4-..E version offers terminal assortment matching the marking of 3-pole AF26(Z)(B)..96-30-00, AF40..96-30-11, AFC26..38-30-00, 4-pole AF09(Z)(B)..80-40-00 / AFC09..38-40-00 or AF09(Z)(B)..80-22-00 / AFC09..38-22-00 contactors. CA4-22E is available with 2 N.O. and 2 N.C. instantaneous contacts for standard industrial environments.

Technical Specifications

Rated Operational Current AC-15 230V (A) 4
Brand ABB
Auxiliary Contacts 2NO/2NC
Connection Type Screw Connection
Dimensions (mm) 43W x 43H x 39.5D
Model Clip-on
Mounting Type Front Fastening
No. of Normally-closed Contacts 2
No. of Normally-open Contacts 2
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Voltage AC (V) 24 - 690
Suitable For AF26 - AF96
Terminal Type Screw
