Product Code: RF1V-2A2BLD1-D24

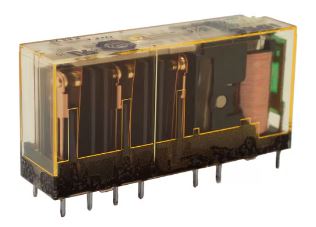

The IDEC RF1V-2A2BLD1-D24 is a force guided relay designed for safety-critical applications. It features 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, with a counter-electromotive force mechanism for enhanced performance. This relay is EN50205 Type A TÜV approved, ensuring compliance with stringent safety standards. It offers both finger-safe DIN rail mount and PC board mount sockets for flexible installation options. Ideal for use in control systems requiring reliable and secure switching operations.

Brand	IDEC
Contact Resistance (mO)	100
Maximum Switching Capacity AC (V)	250
Maximum Switching Capacity AC (VA)	1500
Maximum Switching Capacity DC (V)	30
Maximum Switching Capacity DC (W)	180
Resistance to Shock (m/s²)	200
Resistance to Vibrations	10 to 55Hz
Coil Voltage DC (V)	24
Dimensions (mm)	40W x 24H x 13D
Insulation Resistance (MO)	1000
Maximum Switching Current (A)	6
Minimum Mechanical Life	10,000,000
No. of Normally-closed Contacts	2
No. of Normally-open Contacts	2
No. of Poles	4
Operating Humidity	5 to 85%
Operational Temperature Range (°C)	-40 to 85
Power Consumption (W)	0.36
Rated Current (mA)	15
Weight (g)	20
