Safety Pushbuttons & Operator Devices

ABB FOOT SW MINI - Y MODULE 0.30 M IPM1Y

Product Code: IPM1Y

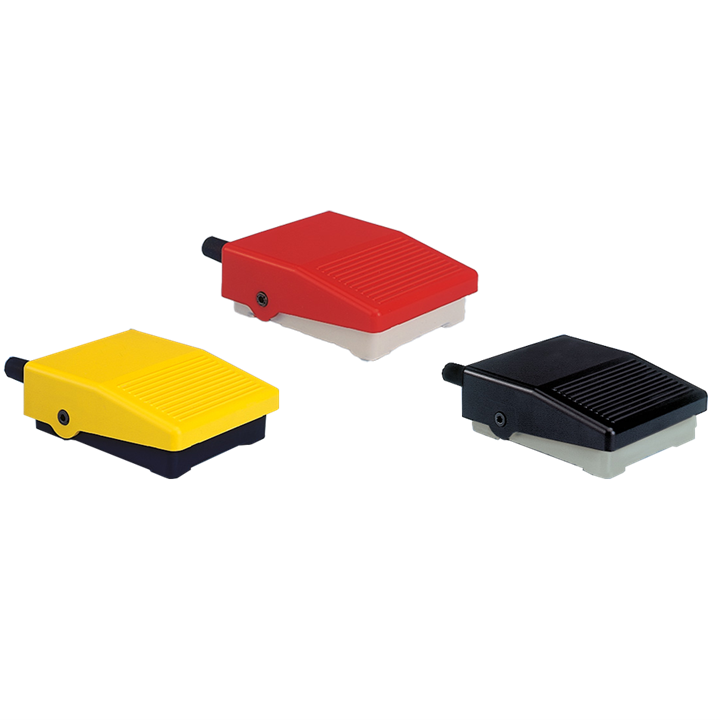

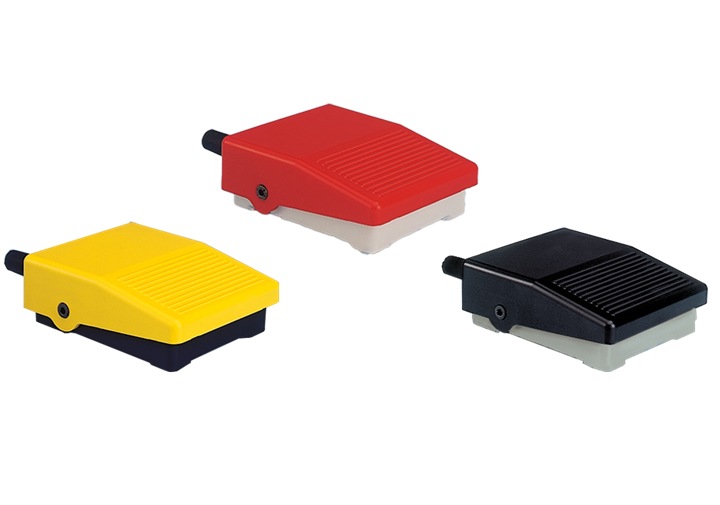

IPM1Y is a Mini Foot Switch with black base and yellow ABS cover. The pedal movement is free and the switch is equipped with 1 soft cable entry and 1 N.O or N.C contact.

Technical Specifications

Net Weight (kg) 0.101
No. of Auxiliary Contacts 1NC + 1NO
Rated Operational Current DC-13 24V (A) 4
Brand ABB
Ambient Temperature Range (°C) -10 ... +70 (Operation)
Conventional Free-Air Thermal Current - Ith (A) 15 (acc. to IEC 60947-5-1, T = 40 °C)
Degree of Protection IP40
Rated Insulation Voltage (V) 250 (acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) )
