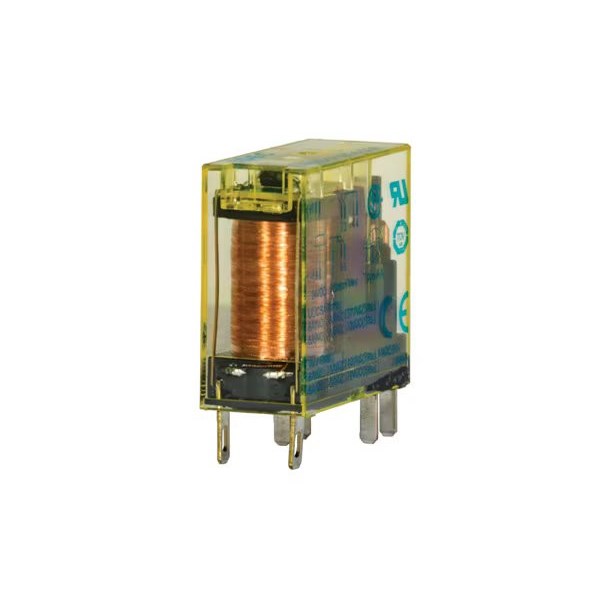

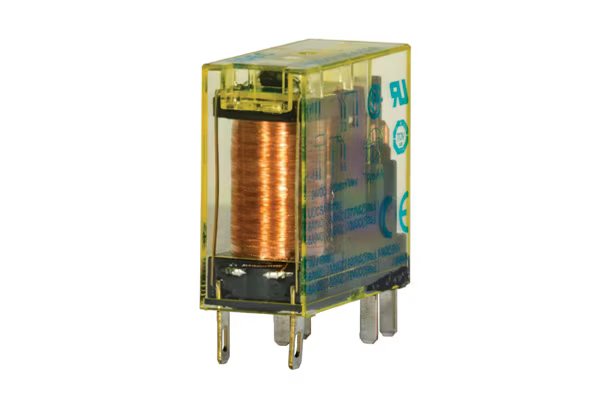

IDEC FORCE GUIDED PLUG-IN RELAY 1NO+1NC 24V DC RF2S-1A1BLD1-D24

Product Code: RF2S-1A1BLD1-D24

The IDEC RF2S-1A1BLD1-D24 is a force guided plug-in relay designed for safety-critical applications. It features a single-pole single-throw normally open (SPST-NO) and a single-pole single-throw normally closed (SPST-NC) contact configuration, with a 24V DC coil voltage. The relay includes an LED indicator for easy status monitoring and a diode for circuit protection. Its flux tight design ensures enhanced reliability in various environments.

Technical Specifications

Brand IDEC
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Coil Voltage DC (V) 24
Degree of Protection RTII (Flux-Tight), RTIII (Sealed)
Insulation Resistance (MO) 1000
Maximum Switching Current (A) 6
Minimum Electrical Life 100,000
Minimum Mechanical Life 10,000,000
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
No. of Poles 2
Operating Humidity 5 to 85%
Pollution Degree 2
Power Consumption (W) 0.7
Rated Insulation Voltage (V) 250
Weight (g) 18
