W66 Industrial IP66 Switchgear

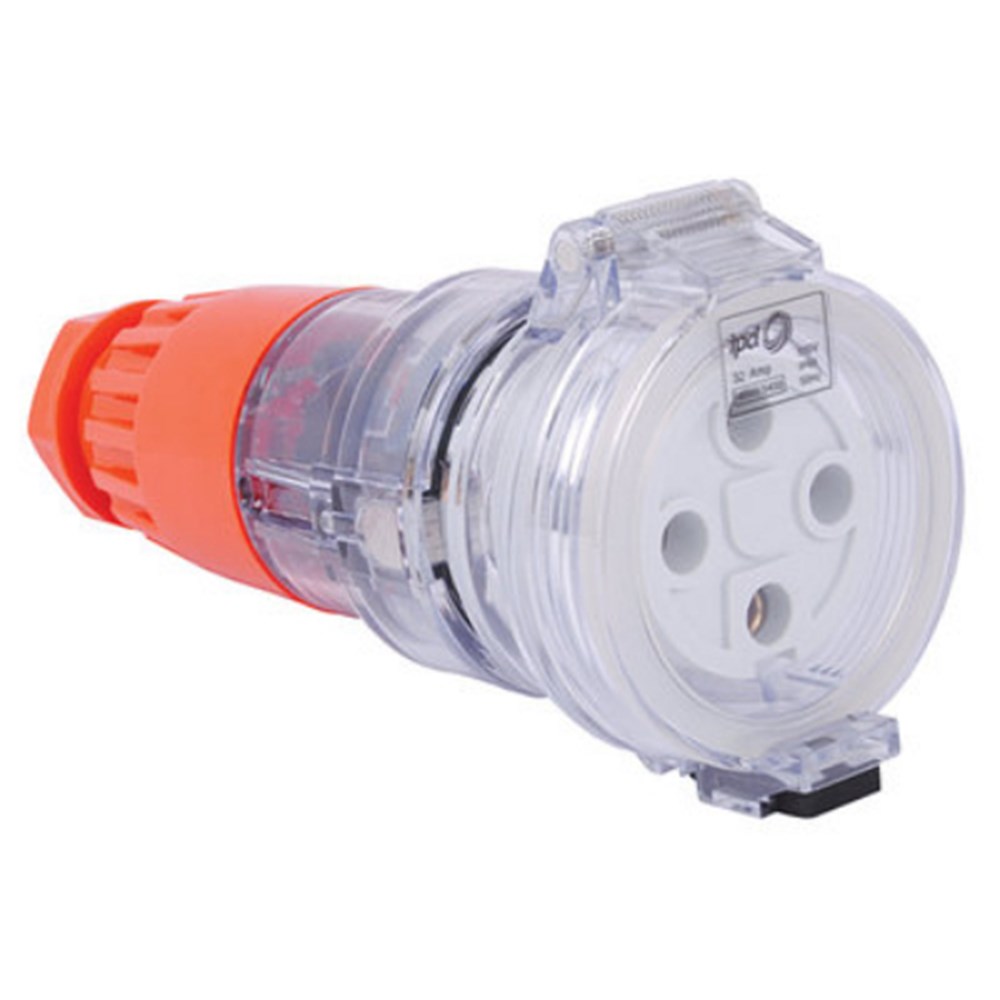

IPD EXTENSION SOCKET THREE PHASE 4 ROUND PINS 50A 500V, IP66 W66ES450

Product Code: W66ES450

This three-phase extension socket features four round pins and has an IP66 rating. It has a current rating of 50A and a voltage rating of 500V. The maximum cable area it can accommodate is 16mm², and it comes with a gland style 3. The socket is equipped with stainless steel fixings, an orange ring, clear bodies, and a silicone cover seal. Additionally, a gland is included with the socket.

Technical Specifications

Brand IPD
Cover Style Clear/Orange
Degree of Protection IP66
Dimensions (mm) 190L
Gland Entries 37mm
Gland Style Compression
Material Polycarbonate
Maximum Cable Cross Section (mm²) 16
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 50
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3123
