W66 Industrial IP66 Switchgear

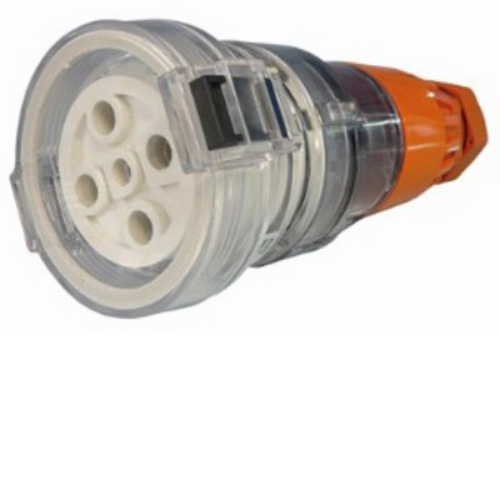

IPD EXTENSION SOCKET THREE PHASE 5 ROUND PINS 10A 500V, IP66 W66ES510

Product Code: W66ES510

This three-phase extension socket features 5 round pins and has an IP66 rating. It has a current rating of 10A and a voltage rating of 500V. The maximum cable area it can accommodate is 6mm², and it comes with gland style 2. The socket is equipped with stainless steel fixings, an orange ring, clear bodies, and a silicone cover seal. Additionally, a gland is included with the socket.

Technical Specifications

Brand IPD
Cover Style Clear/Orange
Degree of Protection IP66
Dimensions (mm) 197L
Gland Entries M25
Gland Style Small Body
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 3
No. of Pins 5
Pin Type Round
Rated Current (A) 10
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3112
