W66 Industrial IP66 Switchgear

IPD EXTENSION SOCKET THREE PHASE 4 ROUND PINS 40A 500V, IP66 W66ES440

Product Code: W66ES440

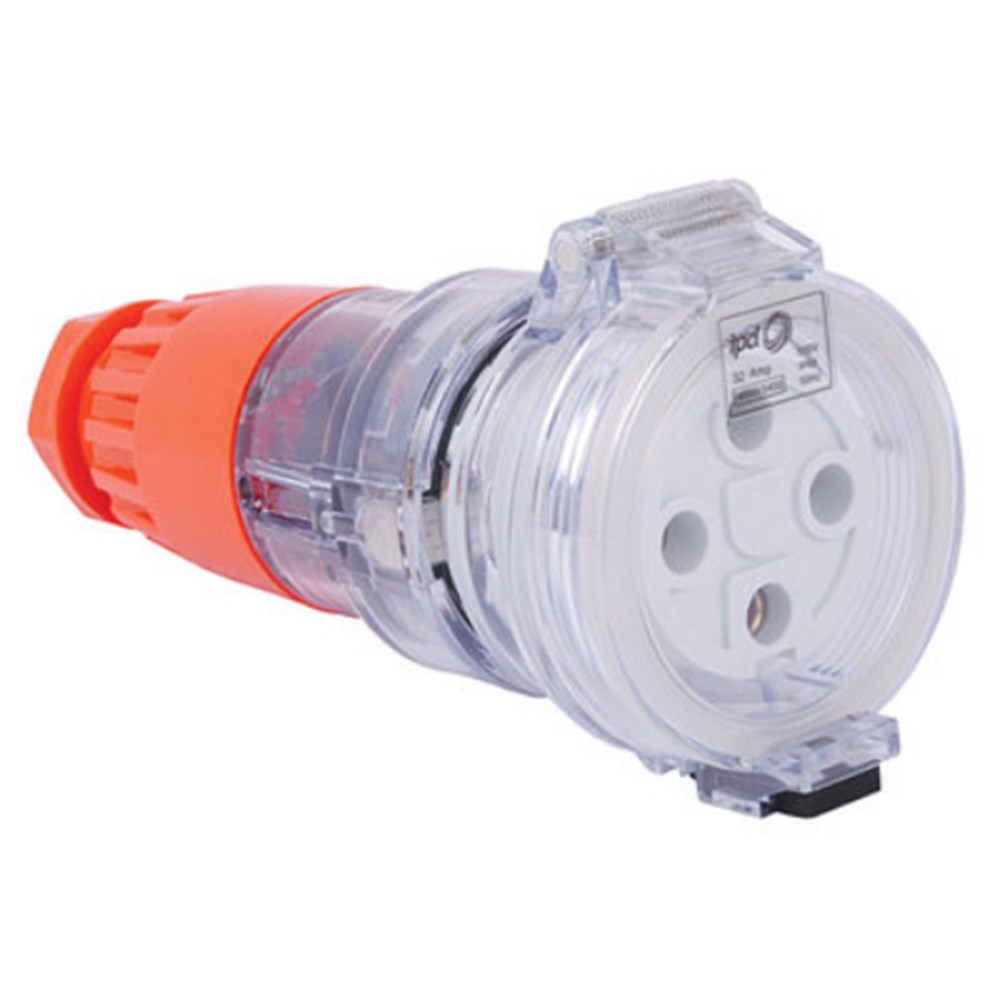

This three-phase extension socket features four round pins and is rated IP66 for protection against dust and water. It has a current rating of 40A and a voltage rating of 500V. The maximum cable area it can accommodate is 16mm², and it comes with a gland style 3. The socket is equipped with stainless steel fixings, an orange ring, clear bodies, and a silicone cover seal. Additionally, a gland is included with the socket.

Technical Specifications

Brand IPD
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 190L
Gland Entries 37mm
Gland Style Compression
Material Polycarbonate
Maximum Cable Cross Section (mm²) 16
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 40
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3123
