W66 Industrial IP66 Switchgear

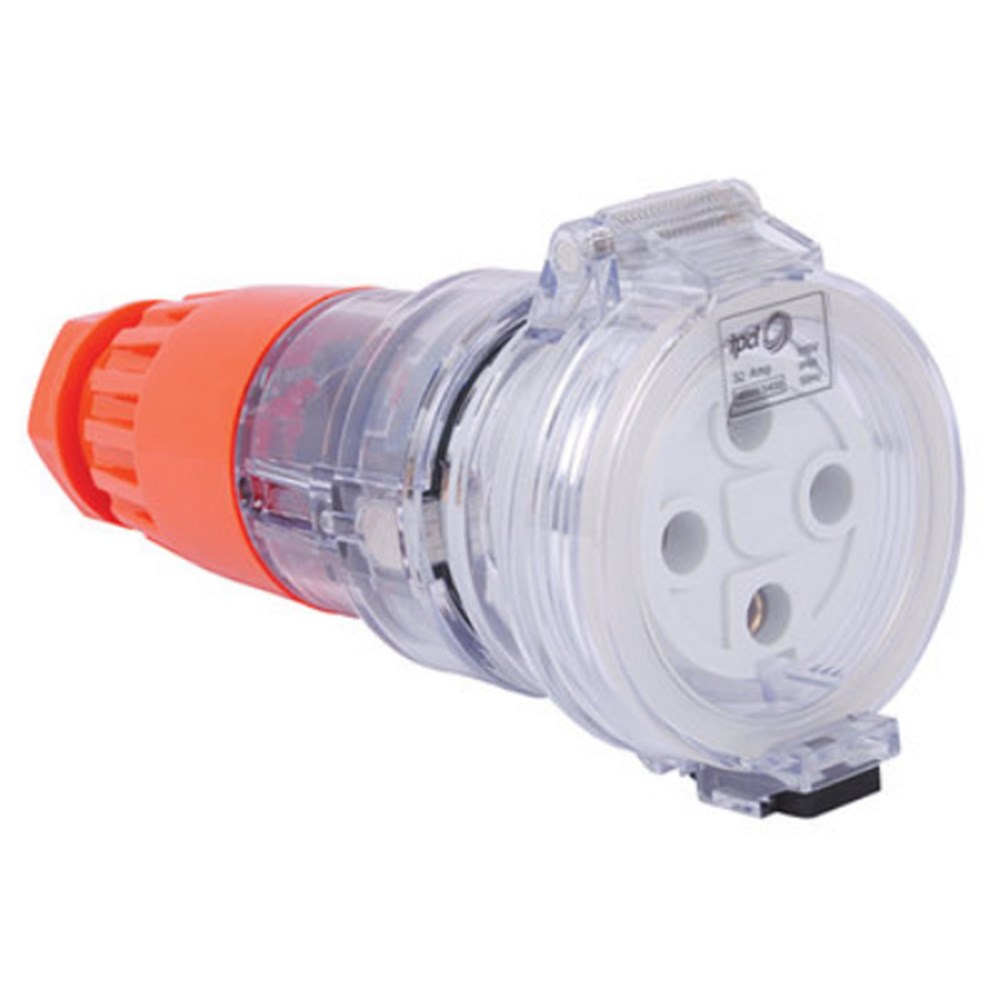

IPD EXTENSION SOCKET THREE PHASE 4 ROUND PINS 32A 500V, IP66 W66ES432

Product Code: W66ES432

This three-phase extension socket features four round pins and has an IP66 rating. It has a current rating of 32A and a voltage rating of 500V. The maximum cable area it can accommodate is 16mm², and it comes with a gland style 3. The socket is equipped with stainless steel fixings and an orange ring, with clear bodies and a silicone cover seal. Additionally, a gland is included with the socket.

Technical Specifications

Brand IPD
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 210L
Gland Entries 37mm
Gland Style Compression
Material Polycarbonate
Maximum Cable Cross Section (mm²) 16
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 32
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3123
