W66 Industrial IP66 Switchgear

IPD EXTENSION SOCKET THREE PHASE 4 ROUND PINS 20A 500V, IP66 W66ES420

Product Code: W66ES420

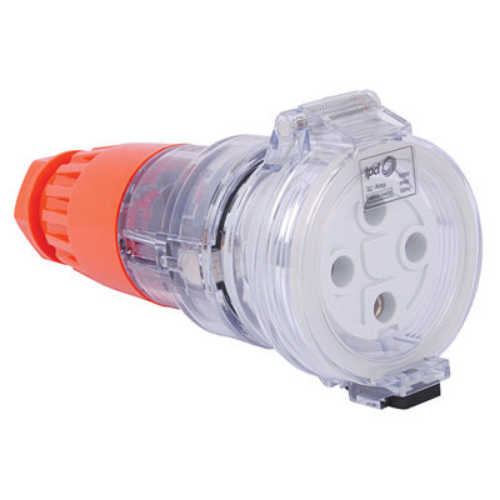

This three-phase extension socket features four round pins and is rated IP66 for protection against dust and water. It has a current rating of 20A and a voltage rating of 500V. The maximum cable area it can accommodate is 6mm², and it comes with gland style 2 for secure cable connection. The socket is made with stainless steel fixings and an orange ring, with clear bodies and a silicone cover seal for added durability. A gland is included with the socket.

Technical Specifications

Brand IPD
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 197L
Gland Entries M25
Gland Style Small Body
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 20
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3123
