W66 Industrial IP66 Switchgear

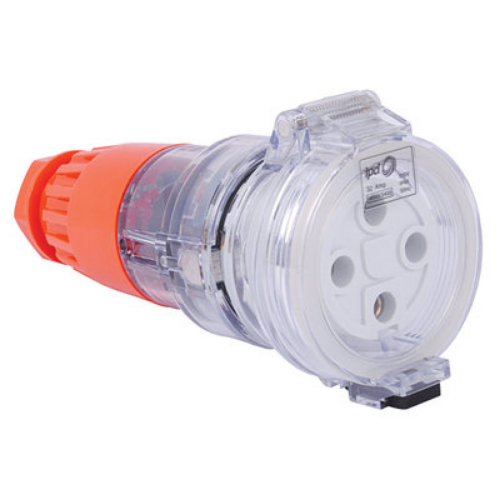

IPD EXTENSION SOCKET THREE PHASE 4 ROUND PINS 10A 500V, IP66 W66ES410

Product Code: W66ES410

This three-phase extension socket features four round pins and is rated IP66 for protection against dust and water. It has a current rating of 10A and a voltage rating of 500V. The maximum cable area supported is 6mm², and it comes with gland style 2 for secure cable connections. The socket is made with stainless steel fixings and an orange ring, with clear bodies and a silicone cover seal for added durability. A gland is included with the socket.

Technical Specifications

Brand IPD
Cover Style Clear/Orange
Degree of Protection IP66
Dimensions (mm) 197L
Gland Entries M25
Gland Style Small Body
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 10
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3112
