W66 Industrial IP66 Switchgear

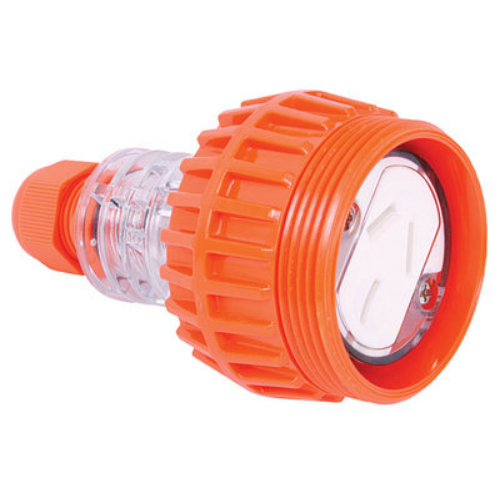

IPD EXTENSION SOCKET SINGLE PHASE 3 FLAT PINS 20A 250V, IP66 W66ES320F

Product Code: W66ES320F

This single phase extension socket features 3 flat pins and has an IP66 rating. It has a current rating of 20A and a voltage rating of 250V. The maximum cable area it can accommodate is 2.5mm², and it comes with gland style 1. The socket is equipped with stainless steel fixings and an orange ring, with clear bodies for easy visibility. A gland is included with the socket.

Technical Specifications

Brand IPD
Cover Style Clear/Orange
Degree of Protection IP66
Dimensions (mm) 110L x 66?
Gland Entries M20
Gland Style Small Body
Material Polycarbonate
Maximum Cable Cross Section (mm²) 2.5
No. of Phases 1
No. of Pins 3
Pin Type Flat
Rated Current (A) 20
Rated Voltage AC/DC (V) 250
Standards and Approvals AS3112
