W66 Industrial IP66 Switchgear

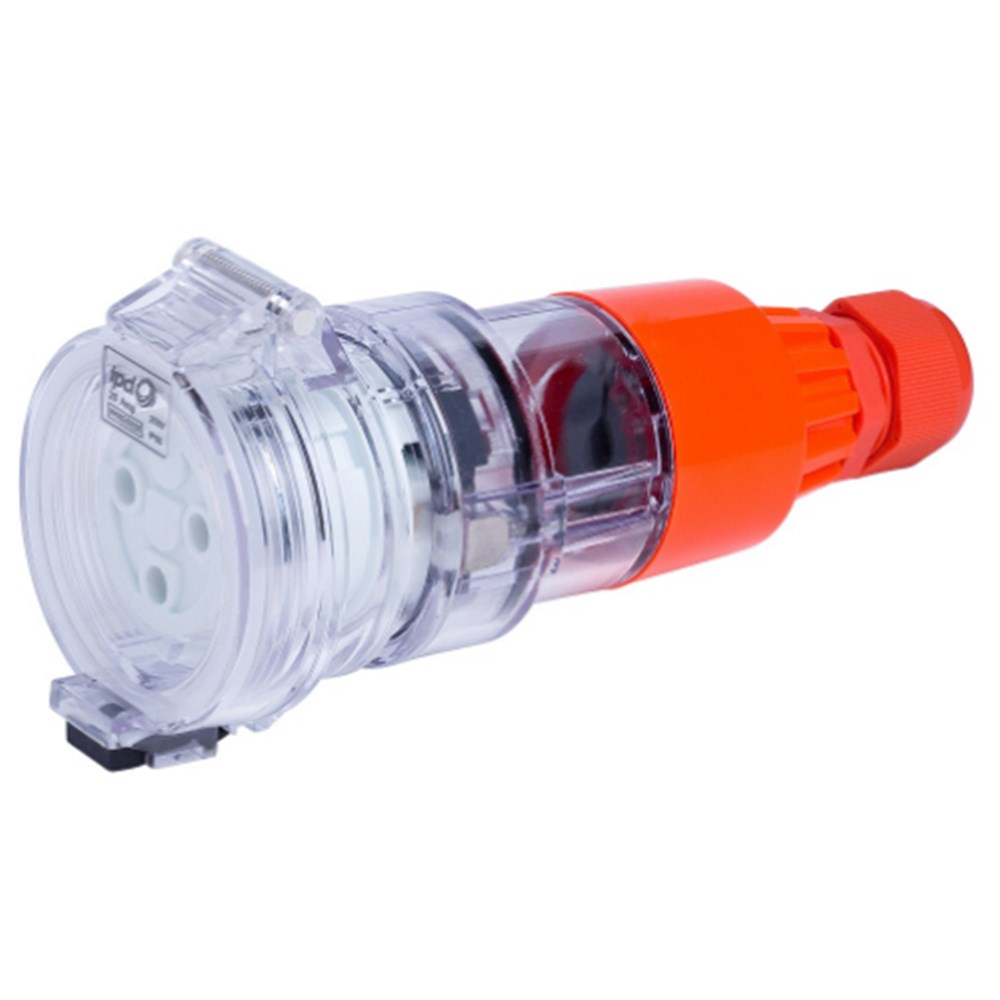

IPD EXTENSION SOCKET SINGLE PHASE 3 ROUND PINS 20A 250V, IP66 W66ES320

Product Code: W66ES320

This single phase extension socket features 3 round pins and has an IP66 rating. It has a current rating of 20A and a voltage rating of 250V. The maximum cable area it can accommodate is 6mm², and it uses gland style 2. The socket is made with stainless steel fixings and an orange ring, with clear bodies. It also includes a gland for installation convenience.

Technical Specifications

Brand IPD
Cover Style Clear/Orange
Degree of Protection IP66
Dimensions (mm) 197L
Gland Entries M25
Gland Style Small Body
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 1
No. of Pins 3
Pin Type Round
Rated Current (A) 20
Rated Voltage AC/DC (V) 250
Standards and Approvals AS3112
