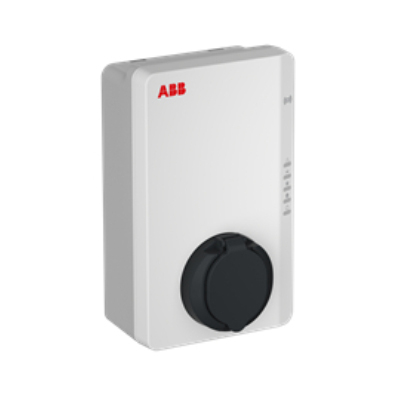

ABB TERRA AC EV CHARGER WALLBOX 3P 415VAC 22kW TAC-W22-T-0

Product Code: TAC-W22-T-0

The Terra AC charger is a standard electric vehicle charger with a socket type 2. It has a voltage rating of 415VAC three phase, a rated power of 22kW, and a maximum current of 32A. The enclosure protection degree is IP54. Connectivity options include Wifi, Bluetooth, and Ethernet. The charger also features a built-in energy meter and integration with advanced energy systems for dynamic load management. Safety measures are built-in and include protection against overcurrent, overvoltage, undervoltage, ground fault, surge protection, and protective earth continuity monitoring. Additionally, the charger is enabled for remote software updates.

Technical Specifications

Advanced Protection Systems Overcurrent, Overvoltage, Ground fault, Integrated surge protection, Intergrated DC Earth Leakage Protection
Charging Standard Mode 3 charging, level 2
Energy Metering Revenue grade energy meter Class B
Network Configuration TT, TN
Rated Power (kW) 22
RFID Enabled No
Software Update OCPP 1.6, ABB web portal or App
Status Indication 5 LED's (Power / Connectivity / Authorization / Charging / Error)
User Interface Terra Config app, ChargerSync™ app or portal for setup
Brand ABB
Certifications CE, CB, MID, UL
Communication OCPP 1.6 and RS485
Configuration ABB web portal or App
Connection Type Wifi, Ethernet (RJ45), Modbus RTU (RS485), Bluetooth
Connector Type Socket, Type 2
Degree of Protection IP54
Dimensions (mm) 400W x 200H
Housing Material Plastic
Maximum Current (A) 32
Mounting Type Wall
No. of Phases 3
Operating Voltage AC (V) 415
Operational Temperature Range (°C) -35...+50 °C
Overvoltage Category III
Standards IEC/EN 61851-1, IEC/EN 62956
Storage Temperature (°C) -50...+80 °C
Weight (kg) 3.3 (net)
