Product Code: OKA63S4RF2

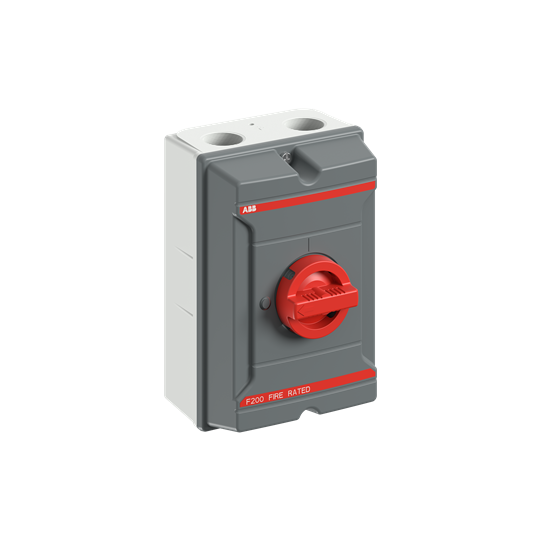

F200 EMC Enclosed Switch Disconnector, 4-p. 415V AC23 63A, 30kW. Mounted auxiliary contact: 1NO0NC. Aluminium enclosure. IP65. Red Round handle. Interlocked cover. The ABB fire rated switches withstand fire acc. to standard EN12101-3. ABB can prodvide products for class F200 (120min), F300 (120min) and F400 (120min). Typical applications are high rise buildings, car parks, tunnels or any other place where there are exhaust fans that should stay on during fire. The enclosure is made of rigid aluminium alloy, or painted steel sheet. The F200 and F400 products are also available with auxiliary contacts. The products are EMC approved, when used with EMC cable glands. The handle is padlockable in On and Off position with max. 3 padlocks, and cover is interlocked.

Control Element Colour	Red
Main Circuit Electrical Connection	Screw Connection
No. of Normally-open Auxiliary Contacts	1
Rated Operational Current AC-22A <415V (A)	63
Rated Operational Current AC-23A <415V (A)	63
Rated Operational Power AC-23A <415V (kW)	30
Brand	ABB
Colour	Grey
Degree of Protection	IP65
Dimensions (mm)	160W x 230H x 118D
Enclosure Material	Aluminium
Handle Colour	Red
Maximum Operational Voltage AC (V)	750
NEMA Degree of Protection	1
No. of Poles	4
Rated Operational Current AC-23A 380-415V (A)	63
Rated Operational Power AC-23A 380-415V (kW)	30
Rated Operational Voltage (V)	750
Rated Short-Time Withstand Current - Icw (kA)	2.5
Rated Uninterrupted Current - Iu (A)	63
Standards and Approvals	EMC Approved
Suitable For	Distribution Board Installation
Type	Main Switch
