ABB BW340TPN POLYCARBONATE ENCLOSED SWITCH DISCONNECTOR 40A 3P SIDE OPERATED
Zoom
Zoom
Zoom

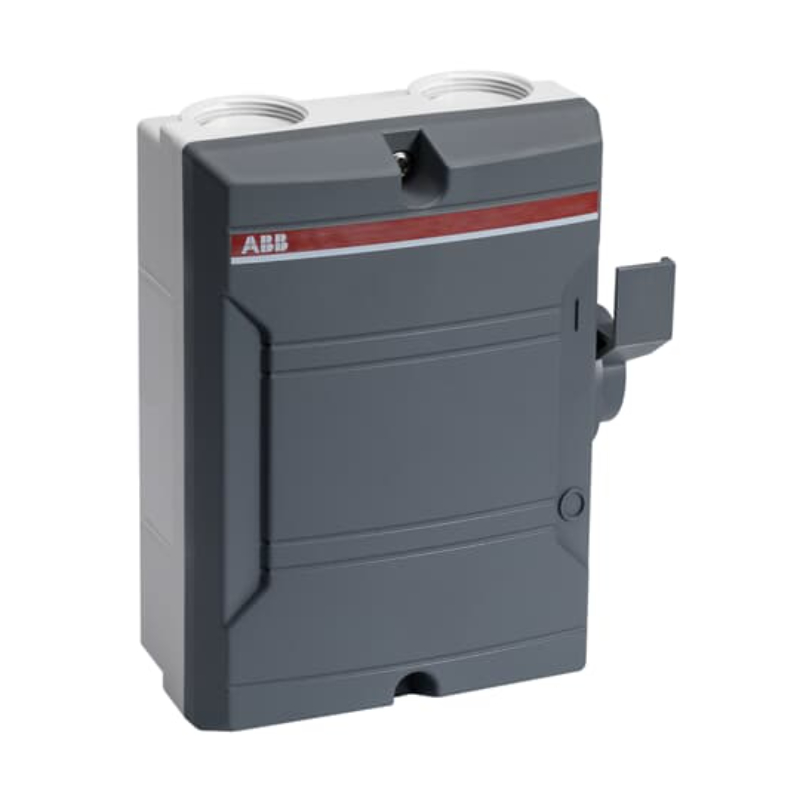

ABB BW340TPN POLYCARBONATE ENCLOSED SWITCH DISCONNECTOR 40A 3P SIDE OPERATED
Product Code: BW340TPN

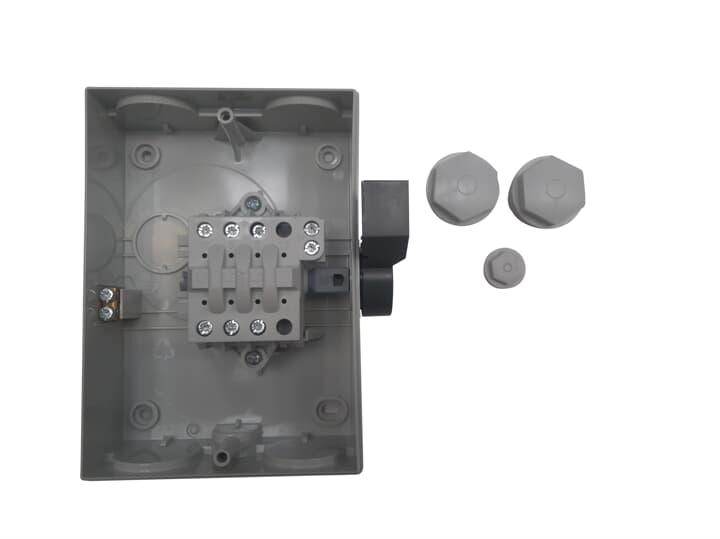

The Polycarbonate enclosed switch disconnector is a grey, side-operated device with 3 poles. It has a rated current (Ith) of 40A and can handle AC22A(415V) at 40A and AC23A(415V) at 32A. The switch disconnector has cable outlets on each side, with options for 2XM32 or 2XM32+1XM16. It is IP54 rated and has dimensions of 168HX138WX68Dmm.
Technical Specifications
Brand
ABB
Cable Cross Section (mm²)
0.75-10
Colour
Light Grey
Conventional Free-Air Thermal Current - Ith (A)
40
Conventional Thermal Current - Ithe (A)
40
Degree of Protection
IP65
Dimensions (mm)
138W X 168H X 68D
Enclosure Material
Plastic
Handle Colour
Dark Grey
Handle Type
Side-Operated
Included
Handle
No. of Poles
3P
Rated Current (A)
40
Rated Impact Resistance
Housing IK08
Rated Impulse Withstand Voltage (kV)
8
Rated Insulation Voltage (V)
690
Rated Operational Current AC-22A 380-415V (A)
40
Rated Operational Current AC-22A 690V (A)
25
Rated Operational Current AC-23A 380-415V (A)
25
Rated Operational Current AC-23A 500V (A)
25
Rated Operational Current AC-23A 690V (A)
16
Rated Operational Power AC-23A 380-415V (kW)
11
Rated Operational Power AC-23A 500V (kW)
11
Rated Operational Power AC-23A 690V (kW)
11
Rated Operational Voltage (V)
690
Standards and Approvals
IEC 60947-1, IEC 60947-3
