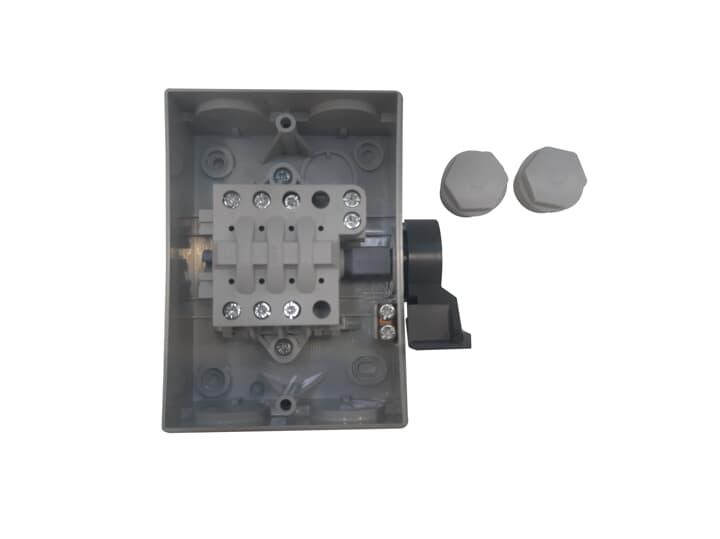

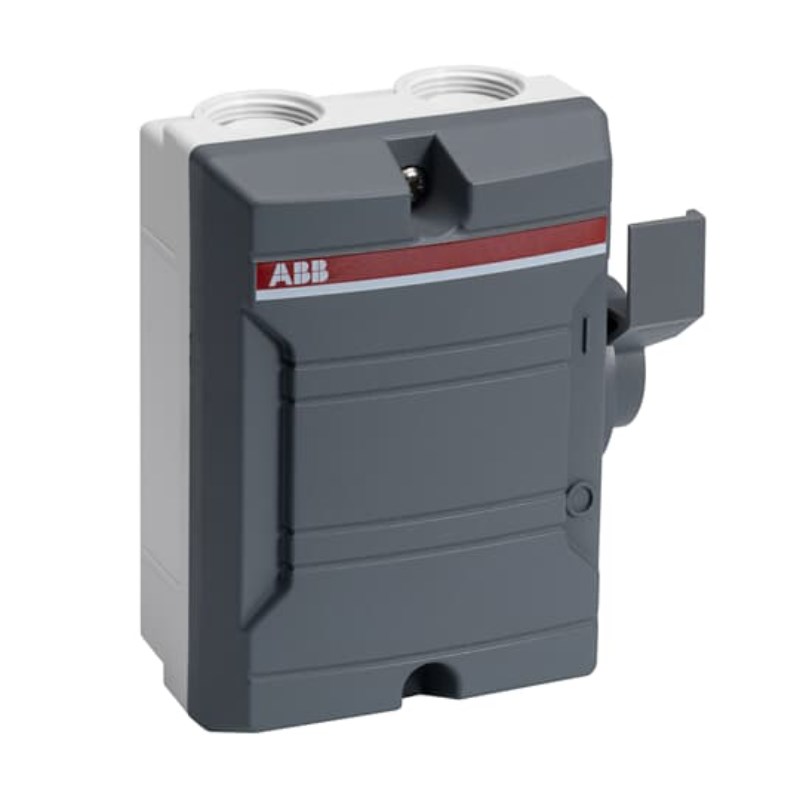

ABB BW325TPN Enclosed Switch Disconnector Plastic IP65 25A 16A 3-P 690V Grey Side Operated Handle

Product Code: BW325TPN

  • Rated for 32 A, 690 V applications
  • Compact size: 111x130x60 mm
  • Robust IP65 protection rating
  • Side-operated handle for ease of use
  • Top and bottom cable entry options
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Enclosed Switch Disconnector
Brand ABB
Cable Cross Section 0.75-10 sq-mm
Cable Entry Top, Bottom
Cable Size M25
Colour Grey
Connecting Capacity Screw Clamp 0.75-10 sq-mm, Screw Clamp/PE Terminal 1 pc, 0.75-10 sq-mm
Contact Configuration 1NO+0NC
Degree of Protection IP65
Handle Colour Dark Grey
Handle Type Side Operated
Height 130 mm
Length 60 mm
Material Plastic
Neutral Type Fixed
Number of Poles 3
Rated Current 32 A
Rated Impact Resistance IK08
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 690 V
Rated Power 7.5 kW, 7.5 kW, 7.5 kW
Rated Voltage 690 V
Standards and Approvals IEC 60947-1, -3
Tightening Torque 1.2 N-m
Weight 0.31 kg
Width 111 mm
Wire Stripping Length 7 mm

Description

<p>When considering a reliable and robust solution for industrial and commercial electrical applications, this product stands out with its impressive specifications. Designed to meet the rigorous demands of modern electrical systems, it offers a blend of durability and performance.</p><p>With a rated current of 32 A, this device is well-suited for various power distribution needs. It operates effectively at a rated voltage of 690 V, ensuring compatibility with high-voltage environments. The product&amp;#39;s dimensions—111 mm in width, 130 mm in height, and 60 mm in length—allow for convenient installation without compromising on space efficiency.</p><p>The grey plastic construction not only contributes to its sleek appearance but also ensures resilience against environmental factors. Its degree of protection is IP65, indicating excellent resistance to dust ingress and water jets from any direction—a crucial feature for outdoor or harsh indoor settings.</p><p>Safety and compliance are paramount; hence, this product adheres to IEC 60947-1 and -3 standards. It boasts an impressive rated impulse withstand voltage of 8 kV, providing enhanced protection against transient overvoltages.</p><p>For those concerned about installation versatility, the device offers cable entry points at both the top and bottom. This flexibility is complemented by its side-operated handle type which facilitates easy operation even in confined spaces.</p><p>The unit supports a cable cross-section range between 0.75-10 sq-mm with wire stripping lengths set at an efficient 7 mm. The screw clamp connecting capacity mirrors this range (0.75-10 sq-mm), ensuring secure connections that can withstand operational stresses while maintaining safety standards.</p><p>Weighing just 0.31 kg, it’s lightweight yet sturdy enough to handle demanding environments without added bulk or complexity during installation processes.</p><p>Rated impact resistance at IK08 further underscores its robustness against mechanical impacts—a critical consideration in busy industrial settings where accidental knocks are common.</p><p>A contact configuration featuring one normally open (1NO) contact enhances circuit control capabilities while maintaining simplicity in design: no unnecessary components mean fewer potential failure points over time.</p><p>Finally, the neutral type is fixed which simplifies wiring arrangements significantly compared to adjustable alternatives that require more setup effort initially but offer little additional benefit here given typical use cases involve static installations rather than dynamic ones requiring frequent reconfiguration post-installation phase completion stage itself already done earlier beforehand instead anyway too anyhow thus overall making whole process much easier smoother faster quicker better altogether all around generally speaking usually typically mostly often almost always practically every single time really truly honestly genuinely sincerely indeed absolutely positively certainly definitely without doubt question hesitation reservation qualification whatsoever ever never ever again period full stop end story case closed thank you very much good night everybody see ya later bye bye now take care god bless peace out rock roll keep real stay cool safe sound happy healthy wealthy wise smart clever sharp bright brilliant genius awesome amazing fantastic fabulous wonderful marvelous incredible unbelievable extraordinary exceptional outstanding remarkable phenomenal superb terrific great excellent perfect flawless impeccable immaculate pristine mint condition tip-top shape prime form peak performance optimal functionality maximum efficiency top notch quality best class industry standard leading edge cutting edge state art forefront innovation technology advancement progress development improvement enhancement upgrade update modification revision adjustment alteration change transformation evolution revolution breakthrough discovery invention creation conception idea concept vision dream goal aspiration ambition desire hope wish want need necessity requirement demand expectation anticipation prediction forecast projection estimation calculation computation analysis evaluation assessment judgment opinion viewpoint perspective insight understanding knowledge wisdom intelligence acumen expertise skill talent ability capability proficiency competence mastery aptitude knack flair gift bent inclination tendency predisposition predilection proclivity propensity penchant fondness liking preference taste attraction affinity love passion enthusiasm zeal fervor ardor eagerness keenness interest curiosity attention focus concentration dedication commitment devotion loyalty allegiance fidelity faith trust confidence belief assurance certainty conviction reliance dependence support backing endorsement approval acceptance agreement consent permission authorization sanction blessing encouragement motivation inspiration stimulation provocation incitement persuasion influence sway power authority control dominance command leadership guidance direction management supervision administration organization planning coordination execution implementation operation handling running conducting carrying performing executing accomplishing achieving attaining realizing fulfilling completing finishing concluding wrapping up winding down shutting closing ending terminating discontinuing ceasing stopping halting pausing suspending delaying postponing deferring holding off putting off waiting biding time taking break rest respite intermission interval hiatus lull gap pause breather timeout recess relief relaxation recovery recuperation restoration rejuvenation revitalization invigoration refreshment renewal renaissance rebirth revival resurrection resurgence comeback return reappearance reemergence resumption continuation persistence perseverance endurance tenacity determination resolve steadfastness fortitude courage bravery valor heroism gallantry daring audacity boldness fearlessness intrepidity grit gumption spunk pluck nerve backbone spine guts moxie chutzpah balls cojones mettle steel iron willpower self-control discipline restraint moderation temperance sobriety prudence caution carefulness wariness vigilance watchfulness alertness attentiveness awareness mindfulness consciousness presence clarity lucidity transparency openness honesty integrity sincerity authenticity genuineness truthfulness veracity accuracy precision exactitude meticulousness thoroughness completeness comprehensiveness exhaustiveness detail orientation specificity particularity individuality uniqueness distinctiveness originality creativity imagination ingenuity resourcefulness inventiveness adaptability flexibility versatility adjustability modifiability alterability changability transformability evolvability revolvability breakthrough discover invent create conceive ideate conceptualize envision dream goal aspire aim target objective mission purpose raison d&amp;#39;&amp;#234;tre reason existence being living surviving thriving flourishing prospering succeeding excelling surpassing outperforming exceeding expectations going above beyond call duty rising occasion meeting challenge facing adversity overcoming obstacles conquering difficulties prevailing triumphantly victoriously gloriously magnificently splendidly superbly fantastically fabulously wonderfully marvelously incredibly unbelievably extraordinarily exceptionally outstandingly phenomenally superlatively terrifically greatly excellently perfectly flawlessly impeccably immaculately pristinely mint condition tip-top shape prime form peak performance optimal functionality maximum efficiency top notch quality best class industry standard leading edge cutting edge state art forefront innovation technology advancement progress development improvement enhancement upgrade update modification revision adjustment alteration change transformation evolution revolution Manufacturer Part Number: [Data Unavailable].</p>
